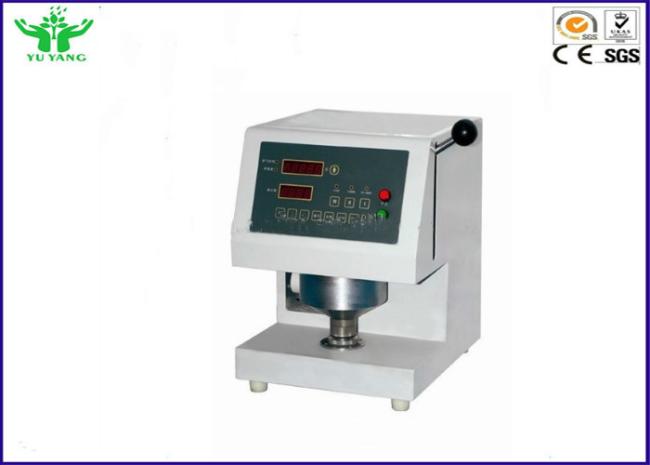

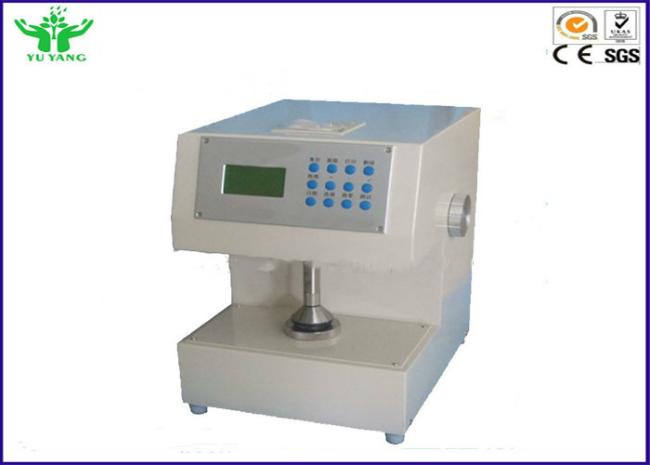

ISO5627 AC 220V Bekk Paper / Pakage Smoothness Test Equipment (380±1)ml

Product Description:

Bekk Paper / Pakage Smoothness Test Equipment is a new type tester developed by our company according to the ISO standards. This instrument is mainly used to test the smoothness of the paper or cardboard (by Bekk method). Bekk smoothness: Time in seconds which under a defined pressure differential is required to draw a definite quantity of air at atmospheric pressure between the surface of the test piece and a ring-shaped plane surface under specified conditions of contact. The smoothness of a wide range of paper and boards may be measured by this method and it is especially recommended for smooth papers and boards. However, for very smooth samples, measurement times may be impractically long.

Main Features:

1.Imported Oil-free vacuum pump,can work without oil

2.Fast measurement:can choose a small volume chamber measurement, measurement time is only one-tenth of a large volume chamber, saving time in measurement.and the function of"automatic test" has been added in , can greatly save time when testing high smoothness.sample

3.Good seal: adopted foreign vacuum sealed plastic and advanced sealing technology to achieve the national standard requirements;

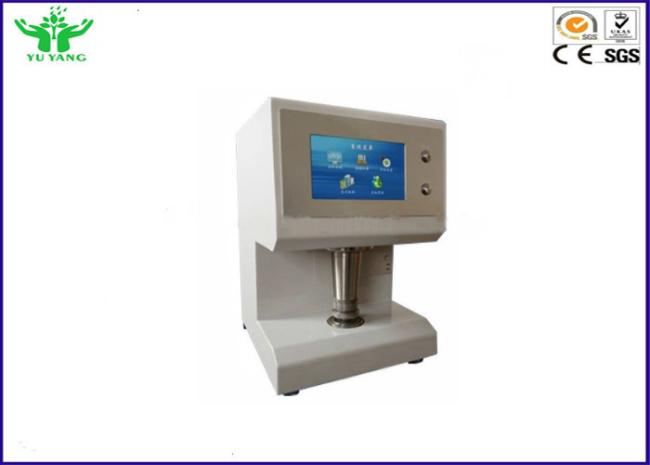

4. Adopted 7.0 inches color touch-screen which makes it easy to operate.

5.Instrument has strong data processing ability, can be directly the statistical results of the data.

6.Adopted CAM and spring structure design, when measuring the single chip microcomputer automatically control synchronous motor rotating ,load pressure and clip paper

7.Data communication: by buying the PC software, the instrument can be connected via USB cable to communicate with the computer.

Standards:

ISO 5627 GB/T456  QB/T1665

Specifications:
