Petroleum Oil Analysis Equipment / Vapour Pressure Apparatus By Reid Method
Price:
USD2500
MOQ:
1 Set
Delivery Time:
15 days
Brand:
YUYANG
Product Description
ASTM D323 Vapour Pressure Testing Equipment by Reid Method for Petroleum Oils
Summary
This vapour pressure tester is made and designed as per national standard of People’s Republic of China GB/T 8017 Petroleum Products- Determination of vapor pressure- Reid method. It is used to test make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.
I. Main technical features

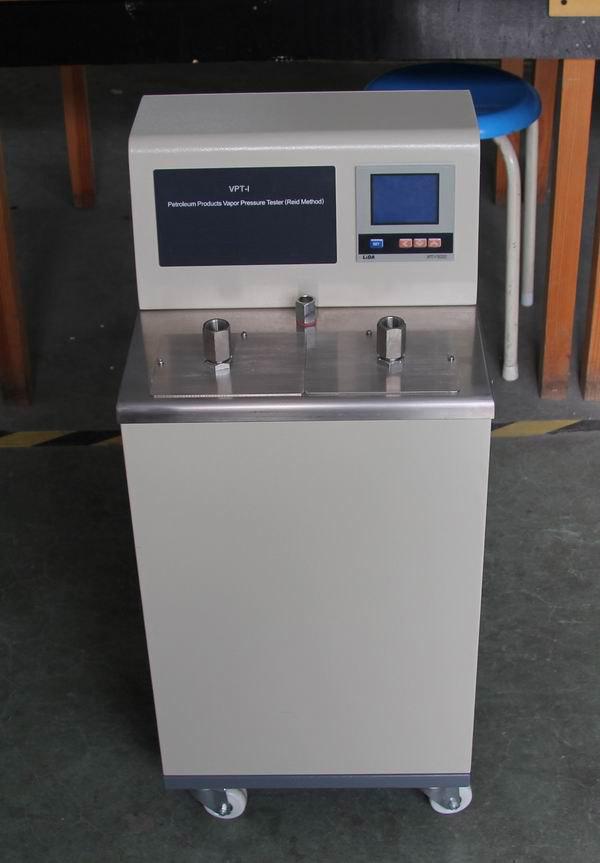

1. VPT-I vapour pressure analyzer adopts floor type structure. Stainless steel working table. It is good looking and easy to operate. Accessories are complete.
2. Digital temperature controller. The temperature in water bath is uniform. Temperature control accuracy is high. It can meet the requirements of test.
3. Two precise pressure meters to detect the gas pressure inside the bomb.
4. Two sets of vapor pressure bombs. It can do synchronous tests.
II. Main technical specifications
1. Power supply: AC (220±10%) V, 50Hz
2. Heating power of bath: 1600W
3. Temperature control range of bath: Ambient to 90℃
4. Temperature control accuracy of bath: ±0.1℃
5. Accuracy of pressure meter: ±0.4％
6. Ambient temperature: (-10~35)℃
7. Relative humidity: ≤85%
8. Maximum power consumption: 1700W
9. Dimension: 350mm×340mm×750mm
III.Accessories
| No. | Item | Unit | Quty | Remarks |
| 1 | Water bath and temperature control device | Set | 1 | |
| 2 | Single opening pressure bomb | Set | 2 | |
| 3 | Pressure gauge, 0 MPa～0.1 MPa | Piece | 2 | Suitable for Reid vapor pressure (20.0~75.0)kPa |
| 4 | Mercury thermometer 0℃～50 ℃, sale division is 0.1 ℃ | Piece | 1 | |
| 5 | Screw valve with outer screw thread (for sealing air chamber) | Piece | 2 | |
| 6 | Screw cap with inner screw thread (for sealing gasoline chamber) | Piece | 2 | |
| 7 | Small gasket (outer diameter Φ14.5mm, inner diameter Φ8mm) | Piece | 4 | |
| 8 | Sealing ring for pressure meter (outer diameter Φ18mm, inner diameter Φ6mm) | Piece | 4 | |
| 9 | 8# Rubber stopper | Piece | 1 | |
| 10 | Stopping ring for thermometer (1#) | Piece | 2 | |
| 11 | 10 A fuse (Φ5×20) | Piece | 2 |
