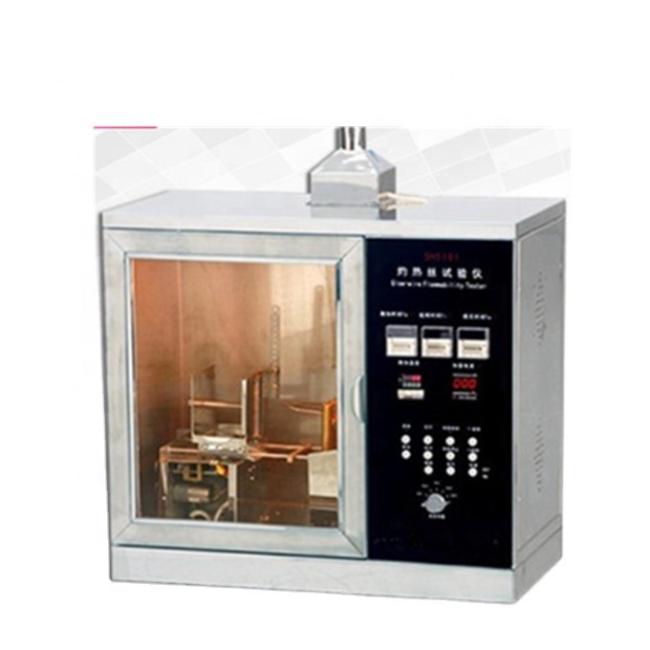

Stainless Steel Needle Flame Test Apparatus , YUYANG 0.5m3 Flammability Test Chamber
Flammability Testing Equipment For Needle Flame Test Stainless Steel Housing
Requirements:
Faults in the product such as fault currents flowing through the leakage path, overheating of components or parts, poor contact, etc. may cause a flame, which may then be directed to nearby parts.
The needle flame test simulates the internal part of the product. A small flame is generated under fault conditions and the risk of ignition is assessed using simulation techniques. For small parts (or components) Glow-wire test or horizontal-vertical combustion test method is not
suitable, can be cited needle flame test method. If the test sample is ignited during the glow-wire test, the resulting combustion hazard is subject to a needle-flame test. Needle flame tester for electrical and electronic products, household appliances parts, components and components,
such as:
wiring board, centrifugal switch, rice cooker socket ... ....
Standard:
in line with international GB / T5169.5 and GB / T 4706.1 standard "needle flame test method"
requirements.
Function and technical index:
The flame of the test is made of bottled butane gas.
The needle of the burner needle has the diameter Φ0.5 ± 0.1mm, the outside diameter is no
more than Ø0.9mm and the length is more than 35mm. Adjustable 12 ± 1mm, according to the
standard requirements transferred to a height measuring instruments. Flame temperature
measurement from 100 ℃ ± 2 ℃ to 700 ℃ ± 3 ℃ time in 23.5s ± 1.0s within. (Tb)
Features:
Combustion tank and the main mechanical part of the stainless steel, manufacturing stress,
resistance to smoke, gas corrosion.
The flame can be used in the range of 0 to 99 minutes and 99 seconds, automatic control, record
the burning duration.
Key components using imported parts, digital time, fixture three-dimensional adjustable, control
system automation, independent ventilation, observation and easy to use, stable and reliable.
Test chamber: 0.5 cubic meters.
