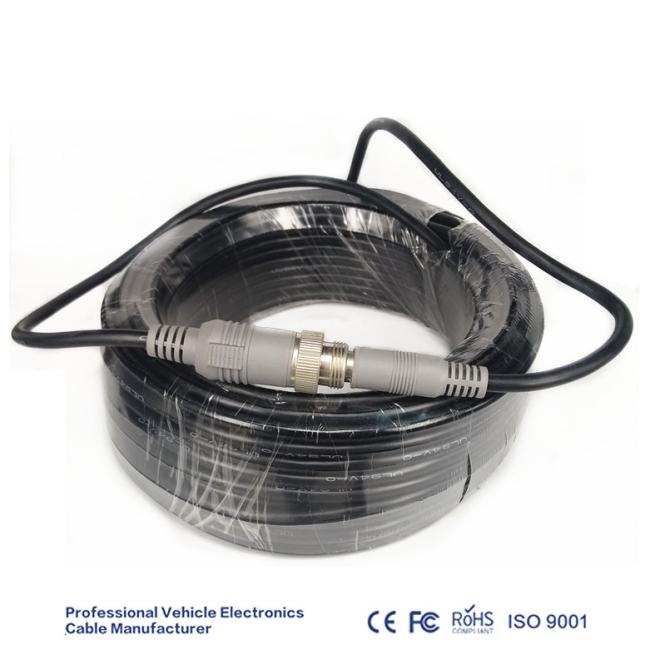

Waterproof Mini Din Pinout Plug Shieled 6 Pin Vehicle Mobile Camera Cable
Waterproof Mini Din Pinout Plug Shieled 6 Pin Vehicle Mobile Camera Cable
1. Features:
Pre-wired, 5-way, combination metal, trailer-end male plug PU materials allows you to connect your truck trailer to your vehicle
Coiled cord can expand to 8' yet still contract to prevent dragging and tangling
Screw trailer cord is resistant to water, oil, and chemicals
| Wiring Code | ||
| Combination Connector | Function | Color |
| Yellow Wire | Video1 | Yellow Wire |
| White Wire | Video2 | White Wire |
| Blue Wire | Video3 | Blue Wire |
| Orange Wire | Video4 | Orange Wire |
| Red Wire | Power 12V | Red Wire |
| GreenWire | Audio | Green Wire |
| shield+ GND Wire | GND | Black |
2. Product Specificaiton :
Trailer Connectors
Trailer End Connector
5 Blade
Plug and Lead
JIANLI
8 Feet Long
| Product name: | mini din pinout plug Shieled 6pin vehicle mobile camera cable |
| Gender of Connector: | male to female,Male to male, female to female |
| Connector type: | water proof,with lock,arecraft grade |
| Cable length: | depends on clients, at least 0.1m |
| Cable OD: | 3mm to 6.24mm |
| PIN No: | 2~23PIN |
| Cores wire: | power,video,audio, earthing,cotton |
| Shielding: | yes(optional) |
| Conductor: | copper |
| Jacket material: | PVC |
| Application: | CCTV Security Camera,Monitor,etc. |
| Certificate: | CE, RoHS |
| Rated Temperature: | -20 degree to 80 degree |
| Rated Votage: | 12V to 24V |
| Shield Type: | Single shielding |
| Cable Length: | 5M,10M,20M,30M(optional) |
3. More Details:
Material :PVC, PU
Colour ; red, black, yellow, blue, nature or as your require.
Working Pressure: 3.5~8MPa .
Working Temperature: -40~+120 Centigrade
Size: 16/18/20/22/24/26/28/30 coils etc.
Working length: 3.5/4.5/5.5/6.5 mter.
7-Core (Pole): Wire type mm²: 0.5 mm²,0.75 mm²,1 mm²,1.5 mm²,etc.
Cable Diameters: 6 x 0,75 mm² / 1 x 1 mm² etc.
Plugs: 2 pcs 5-Core (Pole), Zinc Alloy
Application: the brake joint pipeline of truck camera system , semitrailer, vantruck,containerized traffic bus.
