Special Purpose Vehicle MountedMobile Lighting Tower 2.5 Meters Lift Height
Special Purpose Vehicle-mounted Mobile Lighting Tower 2.5 Meters Lift Height
1. Specification
| Item | Type | Parameter |
| 1 | System operating voltage | 12/24VDC |
| 2 | Lighting devices working voltage | 220VAC |
| 3 | Lighting devices power | 2*250W |
| 4 | Lighting devices working current | ≤ 3A @220VAC (max) |
| 5 | Rotary platform operating current | ≤ 1.5A @24VDC (max) |
| 6 | Working current of the pushrod motor | ≤6A @24VDC (max) |
| 7 | Air pump working current: | ≤5 A |
| 8 | Lighting devices horizontal rotation angle | 380° |
| 9 | Lighting devices vertical rotation angle | 330° |
| 10 | Horizontal and vertical rotation speed of the lighting devices | 4r/min |
| 11 | Light flux of lighting devices | 30,000 lm (single lamp) |
| 12 | Light source form of lighting devices | metal halide lamp |
| 13 | Waterproof grade of lighting devices | IP65 |
| 14 | working temperature | -30℃ ～ 55℃ |

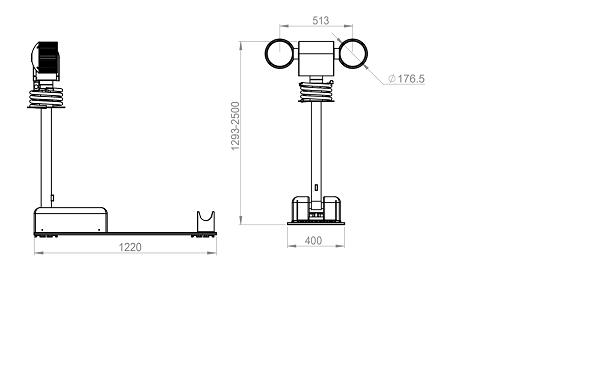

| 15 | The maximum size of the whole machine | 722*1220*2500mm |
| 16 | Lighting devices size | 206*194*91mm |
| 17 | Control handle size | 135*70*24mm |
| 18 | Height of expanding | 2.5m |
| 19 | control method | Wired and wireless control |
| 20 | Power line length | 5.8 m |
| 21 | Remote control distance | ≧ 40 m |
| 22 | Agreement control mode | RS485 Control interface (built-in) |
| 23 | Agreement address | 5 |
| 24 | Baud rate | 9600 |
| 25 | Lift lamp pole | 4 Section |
2. Features
1) Install on the roof of the vehicle, not taking up interior space. All weather operations.
2) Power supplied directly by vehicle battery, no need of electric 300w 12v high mast mobile led light tower, LED bulb,40000lm generator.
3) The lamp holder can rotate or tilt, 360 degree illuminate and search.
4) Hand held remote controller, easy operation.
5) Strong base design, robust, can resist strong wind. 12v/24v vehicle mounted led mobile light tower
6) Different lamp available.
7) Harness can be outside or inside.
8) wired and wireless controller.
| Quantity(Pieces) | 1 - 5 | >5 |
| Est. Time(days) | 3 | To be negotiated |
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
