290HP 6 Seats Emergency Rescue Vehicle With 100 Set Fire And Rescue Equipment
290HP 6 Seats Emergency Rescue Engine with 100 Set Fire and Rescue Equipment

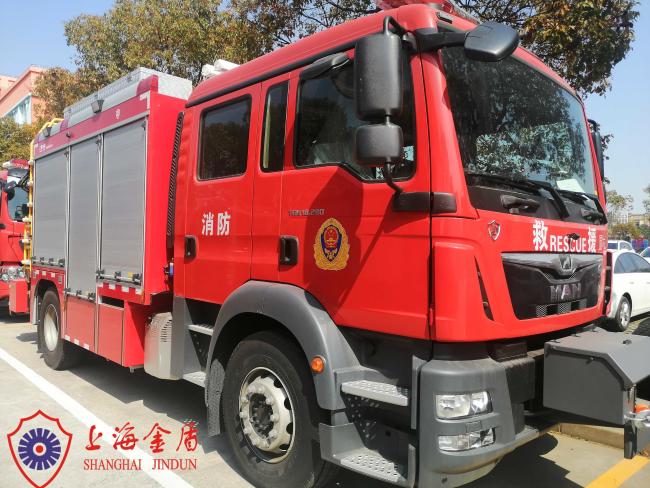

The JY100 chemical accidents rescue and salvage fire vehicle is adapted from MAN TGM 18.290 chassis. Equipped with US imported telescopic lifting lighting, HIAB truck crane and WARN traction winch. The vehicle structure and layout is reasonable, easy operation and maintaince, suitable for large and medium-sized city public security fire brigages, petrochemical enterprised and airport and other professional fire brigaded.
1. Vehicle
| Dimension (L×W×H) | 8655×2500×3500mm |
| Gross weight | 13066kg |
| Complete vehicle shipping mass | 12616kg |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
2. Chassis
| Manufacturer | MAN |
| Model | TGM 18.290 |
| Drive type | 4x2 |
| Cab | Crew cab |
| Wheelbase | 4425mm |
| Max. total mass | 18000kg |
| Max. speed | 96km/h |
| Min. turning diameter | <15.6m |
| Engine type | In-line six-cylinder, inter-cooling, high pressure common rail, electronic control |
| Model | D0836LFL30 |
| Max. power | 213kw |
3. Traction Crane
| Model | HIAB 122B-2CLX |
| Manufacturer | Finland (HIAB) Company |
| Lifting capacity | 11.5tm |
| Max. rated lifting weight | 5700kg |
| Rotary torque | 16.4kN.m |
| Rotation angle | 410° (rear side of safe operating range 180 °) |
| Working radius | 8.2m |
4. Equipment tank
| Manufacturer | SHANGHAI JINDUN |
| Material | Q235A high quality steel combine aluminium alloy sections |
| Structure | Welding, lap structure, skin, floor, interior panels use rust-proof aluminum plane, pedal tread surface, car roof using aluminum patterns. |
| Equipment compartment door | the light quality aluminum alloy, with shutter doors, lightweight and reliable. |
| Internal structure | the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
