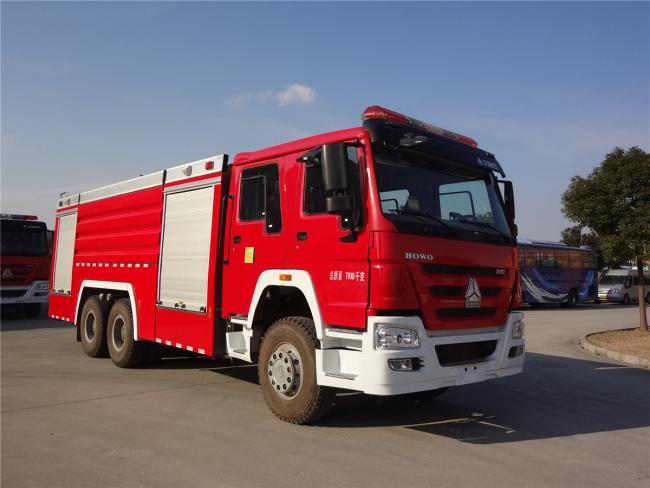

6x4 Drive Type Foam Fire Truck With Flat Top Metal Forward Turnover Cabin

Price Negotiable

Price: Negotiable

MOQ: 1 unit

Delivery Time: 90 days after sign contract

Brand: CIMC Jindun

Product Description

6x4 Drive Type Foam Fire Truck With Flat Top Metal Forward Turnover Cabin

Vehicle

Dimension (L×W×H)	9920×2500×3600mm
Gross weight	27550kg
Complete vehicle shipping mass	14900kg
Seat (inc. driver)	6
Max. power	276kw

Chassis

Manufacturer	Sinotruk HOWO
Model	ZZ5347V4347D5
Drive type	6x4
Cab	Flattop metal forward turnover
Wheelbase	4325+1350mm
Max. speed	90km/h
Min. turning diameter	<22m
Approach angle	16°
Departure angle	12°
Engine type	In-line six-cylinder, water inter-cooling, direct injection diesel engine
Model	D10.38—40
Max. power	276kw
Max. torque	1560N•m
Emission standard	China IV
Clutch	Pull, dry
Gearbox model	Manual, 9 forward gear
Tyre	12.00R20/10

Fire monitor

Model	Elkhart, Vulcan 8500-02
Position	Rear roof
Flow	80L/s
Pressure	1.0MPa
Range	water≥75m ,foam≥70m
Rotation angle	Level ≥360° Max. elevation angle ≥+45° Max. depression angle ≥-7°

Liquid tank

Capacity	Water: 10000kg Foam: 2000kg
Material	304 high quality corrosion resistant plate
Structure	Total side girder
Device	2 ingates 1 overflow device 2 liquid level sensor 2 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92

Side girder

Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
