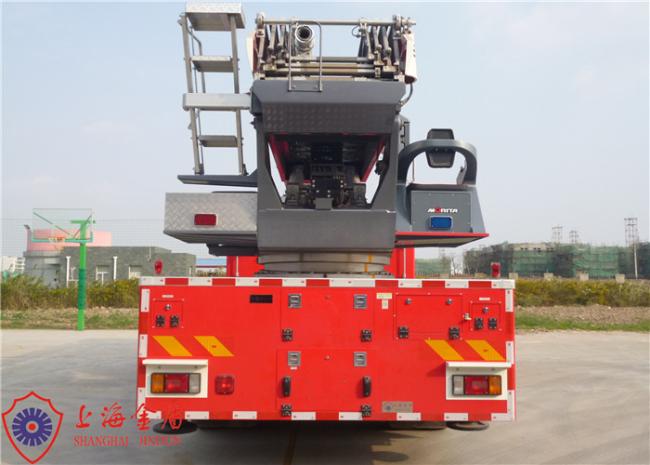

New Generation Six Seats 30m Working Height Aerial Ladder Fire Trucks 2 Axles
Shanghai Jindun Special Vehicle Equipment Co., Ltd. introducesladder technology from Japan Morita Corporation, and combines with our own fire truck development capabilities, which developed YT30 type ladder truck with independent intellectual property rights. This product combines high rescue and low fire fighting functions, which is a new generation of fire truck products.
| Chassis | Manufacturer | Isuzu |
| Model | QL11609QFRY | |
| Drive | 4x2 | |
| Overall | 8785mmX2465mmX2780mm | |
| Wheel base | 5550mm | |
| Gross weight | 16000kg | |
| Chassis net weight | 4750kg | |
| Engine | Model | 4HK1-TCG40 |
| Type | Inline four-cylinder, water-cooled, electric control high pressure common rail diesel engine | |
| Displacement | 5193ml | |
| Power | 138Kw@2600rpm | |
| Torque | 510Nm@1600rpm | |
| Emission standard | China IV | |
| Gearbox | 5-speed manual gear box | |
| Fuel tank | 200L | |
| Cab | Structure | Four-door |
| Seat | 6 |
| Minimum turning diameter(m) | 15.6±0.3 |
| Approach angle (°): | 19 |
| Departure angle (°): | 13 |
| Max weight(㎏): | 15000 |
| Axle load(㎏): |
front:5350 back:9150 |
| Max speed(㎞/h): | 95 |
