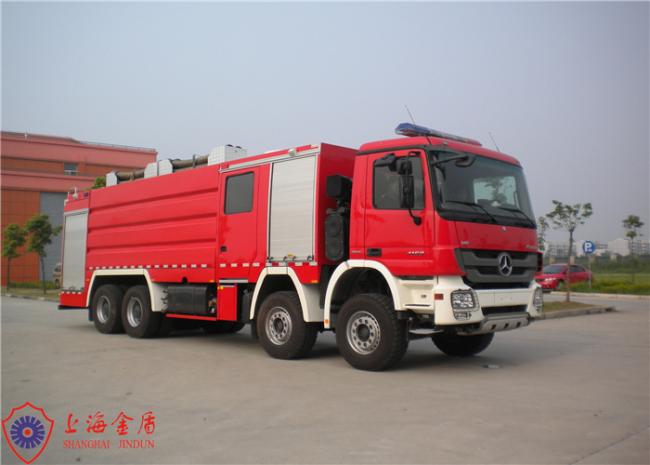

440KW 8×4 Drive Heavy Duty Fire Trucks with Separate Crew Room Six Seats
440KW 8×4 Drive Heavy Duty Fire Trucks with Separate Crew Room Six Seats Rotable Cab
Vehicle
| Dimension (L×W×H) | 11310×2500×3630mm |
| Gross weight | 38650kg |
| Complete vehicle shipping mass | 20600kg |
| Seat (inc. driver) | 6 |
| Max. power | 440kw |
Chassis
| Manufacturer | Daimler |
| Model | Actros4160 |
| Drive type | 8x4 |
| Cab | Rotatable type |
| Wheelbase | 1700+4300+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ≥26m |
| Approach angle | 23° |
| Departure angle | 11° |
| Engine type | Inline eight-cylinder, four-stroke, water-cooling, electronic direct injection diesel engine |
| Model | OM502LA.IV/3 |
| Max. power | 440kw |
| Max. torque | 2800N•m |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual, 16 forward gear |
| Tyre | Forward: 4x 385/65R22.5 |
Equipment layout principles
1, According to combat programming and combat development design
equipment integration
2, According to human body engineering principle design all kinds of equipment frames.
3, According to using logic and frequency of use place equipment
4, 1-2 action can take any equipment standing on the ground or pedal
5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
Onboard equipments
| No. | Item | QTY | NOTE |
| 1 | Suction hose 150×2000mm | 4 | Snap-type |
| 2 | Fire hose 65mm×20m | 6 | Snap-type |
| 3 | Fire hose 80mm×20m | 6 | Snap-type |
| 4 | Water filter | 1 | Snap-type |
| 5 | Delivery bead FFS80 | 1 | three-way wye Snap-type |
| 6 | Collecting breeching FJ150 | 1 | Snap-type |
| 7 | Increaser KJ65/80 | 2 | 80 turn 65 |
| 8 | Increaser | 4 | 80 male and 65 male turn |
| 9 | Suction coupling | 1 | DN150 snap-type to DN100 screw type |
| 10 | Suction wrench FS150 | 2 | |
| 11 | Hose bandage FP470 | 4 | |
| 12 | Hose strap FG600 | 2 | |
| 13 | Pillar hydrant wrench FB450 | 1 | |
| 14 | Underground hydrant wrench FBX800 | 1 | |
| 15 | Air foam gun PQ8 | 2 | |
| 16 | hydraulic monitor QZG3.5/7.5 | 2 | snap-type |
| 17 | Crowbar CT1 | 1 | |
| 18 | Spade 2# | 1 | |
| 19 | Fire axe GFJ817 | 1 | |
| 20 | Foam wrench | 2 | |
| 21 | Foam hose | 1 | DN50 |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
