FIAT IVECO 4×2 Drive 217 Horsepower 2200L / 500L Water/Foam Fire Truck
FIAT IVECO 4×2 Drive 217 Horsepower 2200L / 500L Water/Foam Fire Truck
Electrical system
The main lights in the cab at the top of the long row of lights, public address system with Wail-Yelp alarm whistle, including microphone and 100W loudspeaker. 2 Red and blue alarm lamp on both side. A 70w searchlight is set on the roof of the vehicle.
Vehicle basic data
| Dimension (L×W×H) | 5270mm×2200mm×2980mm |
| Gross weight | 7800 (kg) |
| Wheel base | 2790mm |
| Water/ foam tank capacity | 2200L /500L |
| Max. engine power | 160kW(217hp)/2700r/min |
| Emission standard | China V |
| Max. speed | 110km/h |
| Seat (inc. driver) | 2+3 |
| Approach angle | 18° |
| Departure angle | 30° |
| Fire pump flow | 1.0MPa, 32L/s |
Chassis
| Manufacturer | FIAT IVECO |
| Model | ML 100E22 |
| Driving | 4×2 |
| Min. turning radius | 5.2m |
| Min. ground clearance | Front 169mm, rear 172mm |
| Chassis Net weight | 10910Kg |
| Approach angle | 18° |
| Departure angle | 18° |
| Engine | IVECO TECTOR 6, F4AE3681B*S |
| Max. authorized total mass | 10000kg |
| Displacement | 5.88L |
| Max. torque | 680N•m/1200~2100r/min |
| Max. power | 160kW (217HP)/2700r/min |
| Fuel tank | 115L plastic fuel tank, 25L heating type urea tank, Recor oil-water separator with heating |

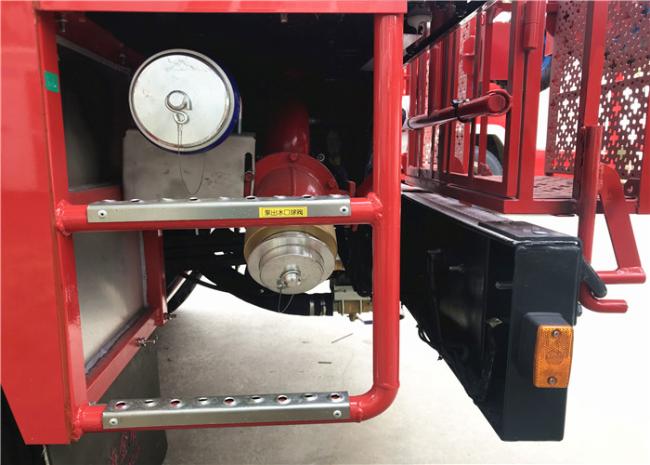

Fire pump
| Manufacturer | HALE |
| Model | AP32 |
| Water flow | 1.0MPa 32L/s |
| Max. suction depth | 7m |
| Priming time | ≤35s |
Liquid pipe
| Capacity | Water : 2200L, foam: 500L |
| Material | High quality stainless steel 304 |
| Equipment |
1 manhole (450mm) 1 overflow device 1 venting device 2 liquid level sensor 2 drain outlet with valve 2 outside filling pipe end 1 inside filling pipe end |
