5 Seats Hydraulic Control Clutch Rear Mount Pump Water Tanker Fire Truck
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
90 days after sign contract
Brand:
Jindun
Product Description
Five Seats Hydraulic Control Clutch Installed Water Tanker Fire Truck With Strobe Lights
Vehicle
| Dimension (L×W×H) | 6255×1945×2940 (mm) |
| Gross weight | 6630(kg) |
| Complete vehicle shipping mass | 4255 (kg) |
| Extinguishant capacity | Water: 2000L |
| Seat (inc. driver) | 2+3 |
| Max. power | 88/2900 kw/hp |
Chassis
| Manufacturer | ISUZU |
| Model | QL1070A1HWY |
| Drive type | 4x2 |
| Cab | Equipped with 3 air resporator |
| Wheelbase | 3360mm |
| Chassis net weight | 2070kg |
| Max. allowable load | 6725kg |
| Max. speed | 105km/h |
| Min. turning diameter | ＜13.6m |
Electrical system
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment.

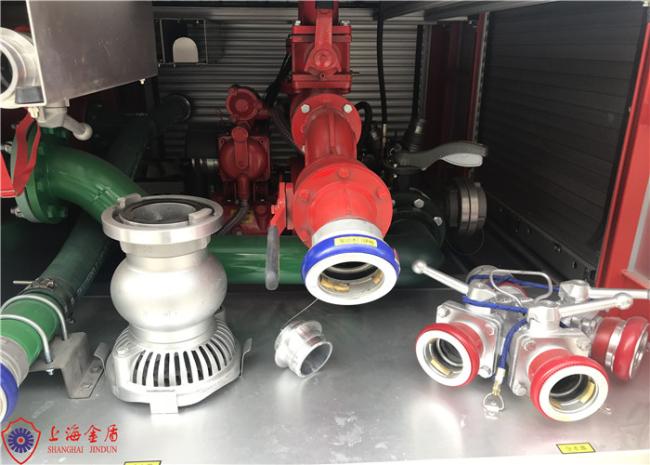

Onboard equipments
| No. | Item | QTY | NOTE |
| 1 | Suction hoseΦ100×8m | 1 | |
| 2 | Fire hose 65mm×20m | 8 | Snap-type |
| 3 | Fire hose 80mm×20m | 4 | Snap-type |
| 4 | Water filter | 1 | Snap-type |
| 5 | Dividing breeching FF65 | 1 | |
| 6 | Increaser KJ65/80 | 4 | |
| 7 | Suction wrench FS150 | 4 | |
| 8 | Hose bandage FP470 | 4 | |
| 9 | Hose strap FG600 | 4 | |
| 10 | hydraulic monitor QZG3.5/7.5 | 2 | snap-type |
| 11 | Crowbar GT1 | 1 | |
| 12 | Dry powder extinguisher | 1 | |
| 13 | Fire axe GFJ817 | 1 | |
| 14 | Basic hand tool | 1 | |
| 15 | Post fire hydrantFB450 | 1 |
