GKS-22Q Four Section Telescoping Work Platform ISUZU Chassis 4x2 Drive

Price Negotiable

Price: USD

MOQ: 1

Delivery Time: 3months

Brand: KaiFan

Product Description

ISUZU chassis 4x2 drive 22M Telescopic Boom Aerial Working Platform 90km/h speed 200kg load

A,Working Condition

1,Altitude: 0-1000m

2,Temperature: -25℃--+45℃, environmental relative humidity ≤90%

3,Allowed working condition: solid, stable land, the vehicle should be horizontal

4,Wind force: ≤6 degree (wind speed ≤12.5m/s)

B,Vehicle Information

C,Main Parameters

Bulletin No.		KFM5075JGK
Type		GKS-22Q
External dimensions(mm)		7150×2045×3550
Structure type		Four-section telescopic boom
Working Cage	Internal size(mm)	1000×650×1100
	Rated loading(kg)	200(or 2 persons)
	Max. Working height(mm)	22000
	Max. Height from ground(mm)	20300
	Rotation angle(º)	Left 90 º, right 90 º
	Max. Working radius(mm)	13400
	Working radius when doing the highest height(mm)	4190
Working Boom	Lifting angle(º)	-12~80
	Out rate speed(mm/sec)	12360/70
	Ret rate speed(mm/sec)	12360/70
	Boom rack rotation angle(º)	360
	Boom rack rotation speed(r/min)	1.0

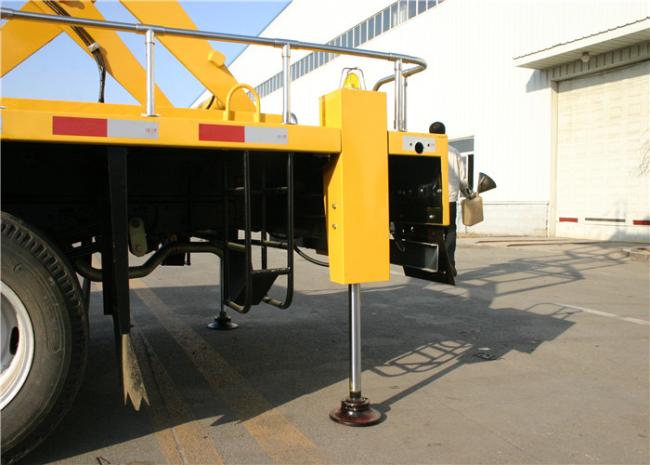

Outrigger	) Vertical span(mm)	4000
	Horizontal span(mm)	4000
	Traveling of vertical outrigger(mm)	550
	Adjustment	Single adjustable

D,Chassis Introduction

Traveling Performance Parameters	Chassis model	ISUZU NKR77LLPACJAY (EN III)
	Persons	2
	Axle base (mm)	3360
	Wheel base (front/rear)(mm)	1504/1425
	Driving mode	4×2
	Front suspension(mm)	1015
	Rear suspension(mm)	2100
	Approaching angle(º)	24
	Departure angle(º)	12
	Max. Grade ability(%)	28
	Min. Turning diameter(mm)	13600
	Min. Ground clearance(mm)	190
Engine	Engine model	4KH1-TC
	Rated power(kw/r/min)	96/3400
	Torque(N,m/r/min)	280/1700
