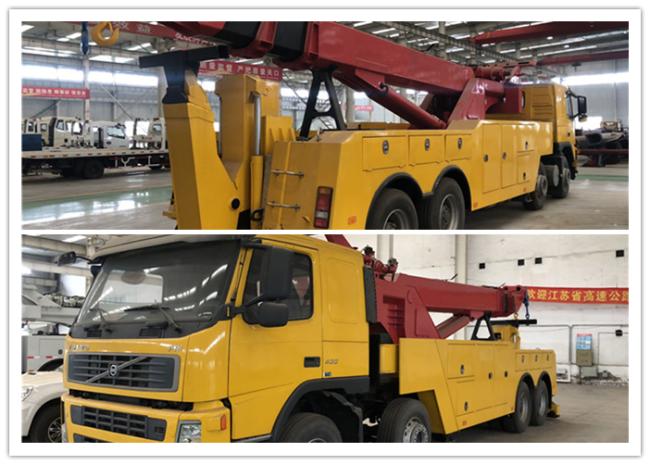

Diesel Fuel Road Wrecker Truck Max Speed 90 Km / H 2 Pieces Winch D13 Engine
Diesel fuel Max. Speed 90km/h VOLVO brand chassis Road Wrecker 2 pieces of winch 10×4 drive
1/Main Parameters
| Items | Unit | Value | |
| Lifting Structure | Rated Lifting weight | kg | 15815 |
| Max. Lifting weight of original place | kg | 35000 | |
| Max. Lifting weight of full extension boom | kg | 12500 | |
| Rated towing weight | kg | 54000 | |
| Max. Designed towing weight | kg | 80000 | |
| Effective length of boom | m | 3670 | |
| Extension traveling of boom | m | 1850 | |
| Folding angle of boom | ° | 90 | |
| Under lift Structure | Max. Rated hanging weight | kg | 40000 |
| The height from hook to the ground | mm | 13500 | |
| Max. Extension traveling of lifting boom | mm | 6000 | |
| Rotation angle | ° | 360 | |
| Numbers of winch | piece | 2 | |
| Rated pulling power of winch | kg | 25000 | |
| Dia. Of steel cable | mm | 26 | |
| Length of steel cable | m | 45 | |
| Min. Speed of steel cable | m/min | 4 | |
| Rotation angle | ° | 65 | |
|
Vehicle |
External dimension | mm | 11342×2500×3710 |
| Chassis model | FM440 104RB | ||
| Drive | 10×4 | ||
| Axle base | mm | 1995+2805+1400+1370 | |
| The whole weight of empty load | kg | 38055 | |
| Load of front axle of empty load | kg | 16885 | |
| Load of rear axle of empty load | kg | 21170 | |
| The whole weight of full load | kg | 54000 | |
| Load of front axle of full load | kg | 9000 | |
| Load of rear axle of full load | kg | 10000/13000 | |
| Wheel base (front/rear axle) | mm | 2029/1875 | |
| Front suspension | mm | 1362 | |
| Rear suspension | mm | 1750 | |
| Approach angle | º | 16.6 | |
| Departure angle | º | 20 | |
| Min. Turning diameter | m | 27.2 | |
| Min. Ground clearance | mm | 306 | |
| Max. Speed | km/h | 90 | |
| Max. Grade ability | % | 25 | |
| Gas consumption per one hundred miles(diesel oil) | L | 42.9 | |
| Engine model | - | D13 | |
2/Working Range
KFM5540TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind.
3/Standard Equipments
1. VOLVO FM440 104RB
2. Main boom structure assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Control structure assembly
6. Chain wheel and hanging assembly
7. Winch assembly (include winch clutch, impaction device)
8. Steel body assembly
9. Tool box assembly
