45m Steel Cable Heavy Wrecker Trucks Rated Pulling Power Winch 25000kg
Price:
USD
MOQ:
1
Delivery Time:
3months
Brand:
Young da
Product Description

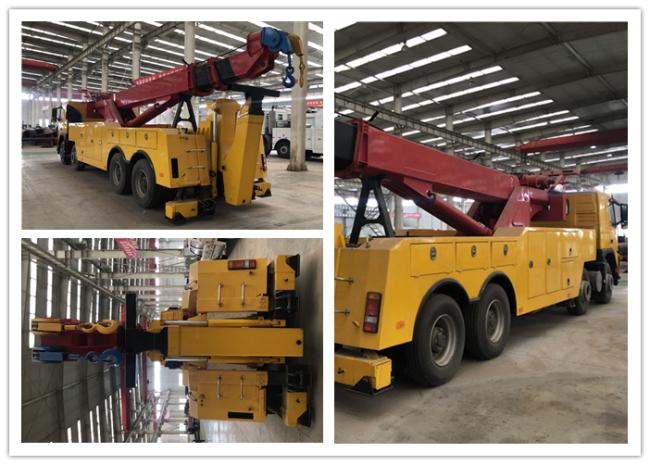

45m Length of steel cable VOLVO Road Wrecker Rated pulling power of winch 25000kg
1....Standard Equipments
1. VOLVO FM440 104RB
2. Main boom structure assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Control structure assembly
6. Chain wheel and hanging assembly
7. Winch assembly (include winch clutch, impaction device)
8. Steel body assembly
9. Tool box assembly
10. Light stands assembly
11. Alarm device
12. Hydraulic system
13. Hydraulic system over voltage protection device
14. Electric system
2.... Main Parameters
|
Vehicle Parameters |
External dimension | mm | 11342×2500×3710 |
| Chassis model | FM440 104RB | ||
| Drive | 10×4 | ||
| Axle base | mm | 1995+2805+1400+1370 | |
| The whole weight of empty load | kg | 38055 | |
| Load of front axle of empty load | kg | 16885 | |
| Load of rear axle of empty load | kg | 21170 | |
| The whole weight of full load | kg | 54000 | |
| Load of front axle of full load | kg | 9000 | |
| Load of rear axle of full load | kg | 10000/13000 | |
| Wheel base (front/rear axle) | mm | 2029/1875 | |
| Front suspension | mm | 1362 | |
| Rear suspension | mm | 1750 | |
| Approach angle | º | 16.6 | |
| Departure angle | º | 20 | |
| Min. Turning diameter | m | 27.2 | |
| Min. Ground clearance | mm | 306 | |
| Max. Speed | km/h | 90 | |
| Max. Grade ability | % | 25 | |
| Gas consumption per one hundred miles(diesel oil) | L | 42.9 | |
| Engine model | - | D13 | |
| Engine emission | L | 12.8 | |
| Rated power | kw/r/min | 440/324/1400~1800 | |
| Torque | n·m/r/min | 2200/1050~1400 | |
| Fuel type | Diesel | ||
| Standard of emission | EN III | ||
| Tire size | 315/80R22.5 | ||
| Persons | 2 |
