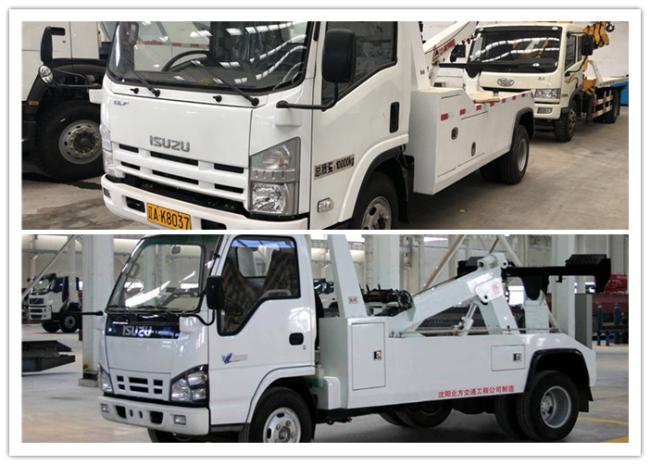

100km / H Max Speed Road Wrecker Truck With 360 Rotation Angle SQZ1507N
Price:
USD
MOQ:
1
Delivery Time:
3months
Brand:
Young da
Product Description
The height from hook to the ground 3500mm Light-duty N Series (ISUZU) Road Wrecker 100km/h max speed
A,Working Condition
1,Altitude: 0-4500m
2,Temperature: -35℃--+45℃
B,Main Parameters
| Items | Unit | Value | |
| Boom Structure | Rated towing weight | kg | 7200 |
| Rated lifting weight | kg | 3000 | |
| Max. Lifting weight of full extension boom | kg | 1500 | |
| Effective length of boom | mm | 1800 | |
| Extension traveling of boom | mm | 650 | |
| Folding angle of boom | ° | 98 | |
| Under lift Structure | Rated hanging weight | kg | 1500 |
| The height from hook to the ground | mm | 3500 | |
| Numbers of winch | piece | 1 | |
| Max. Pulling power of winch | kg | 4000 | |
| Diameter of steel cable | mm | 10 | |
| Length of steel cable | m | 25 | |
| Min. Speed of steel cable | m/min | 4.5 | |
| Rotation angle | ° | 32 | |
|
|
External dimension | mm | 5830×1980×2425 |
| Chassis model | I NKR77PLPACJAY | ||
| Axle base | mm | 3815 | |
| Drive | 4×2 | ||
| The whole weight of empty load | kg | 4075 | |
| Load of front axle of empty load | kg | 2000 | |
| Load of rear axle of empty load | kg | 2075 | |
| The whole weight of full load | kg | 7205 | |
| Load of front axle of full load | kg | 2500 | |
| Load of rear axle of full load | kg | 4705 | |
| Wheel base (front/rear axle) | mm | 1504/1425 | |
| Front suspension | mm | 1015 | |
| Rear suspension | mm | 790 | |
| Approach angle | º | 24 | |
| Departure angle | º | 26 | |
| Min. Turning diameter | m | ≤15.2 | |
| Max. Speed | km/h | 100 | |
| Grade ability | % | 30 | |
| Min. Ground clearance | mm | 190 | |
| Engine model | - | 4KH1-TC | |
| Rated power | kw/r/min | 96/3400 | |
| Max. Torque | n·m/r/min | 280/1700 | |
| Engine emission | L | 2.999 | |
| Fuel type |
Diesel |
||
| Standard of emission |
|
||
| Tire size | 7.00-16(option7.50-15,7.50R15,7.00R16) | ||
| Persons | 2 | ||
C,Standard Equipments
1. ISUZU NKR77LLPACJAY
2. Main boom structure assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Control structure assembly
11. Hydraulic system
12. Hydraulic system over voltage protection device
13. Electric system
14. PTO Warner
15. Combination lamps
16. Steel wire rope (including hook) (25m/pcs)
17. Standard spare tire
18. L wheel lift
19. Bind belt
20. Vulnerable parts attachment
