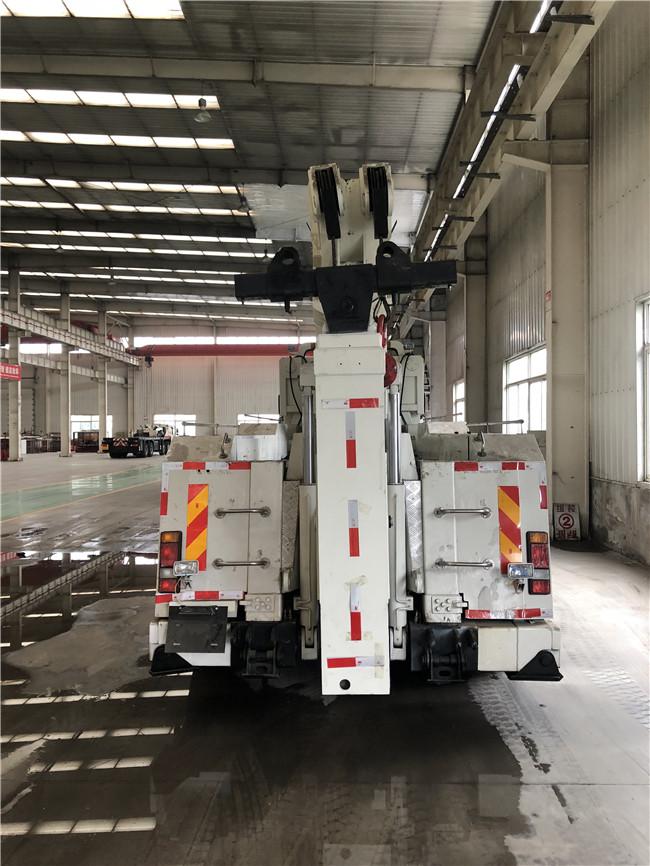

Heavy-duty H Series Road Wrecker Max Extension traveling of lifting boom 6000mm
Heavy-duty H Series Road Wrecker Max Extension traveling of lifting boom 6000mm
Structural composition:
based on chassis, equipped with lifting device, tow device,and hoisting device,with function of lifting, traction,hositing,load transportation and so on,convenient,operation,beautiful appearance,safe and reliable.
Applicable scope:
widely used in highway,traffic police,the airport,dock,auto repair industry,highway company and other departments,can clean up accident vehicle,fault vehicle and violation vehicle timely and quickly.
1.This truck is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc.
2.8X4 chassis, flat cab with left/right hand drive/AC.
3.6 cylinder diesel engine with 400 Horsepower,Euro III/Euro IV Emission Standard , 9/10 shift gearbox.
4.Air break,power steering .
Technical Parameters
This parameter is just for your referance, we can produce different specifications according
to your demands.
|
Vehicle Parameters |
External dimension | mm | 10741×2500×3366 |
| Chassis model | FM400 84RB | ||
| Drive | 8×4 | ||
| Axle base | mm | 1995+4405+1370 | |
| The whole weight of empty load | kg | 30040 | |
| Load of front axle of empty load | kg | 14380 | |
| Load of rear axle of empty load | kg | 15660 | |
| The whole weight of full load | kg | 44000 | |
| Load of front axle of full load | kg | 9000/9000 | |
| Load of rear axle of full load | kg | 13000/13000 | |
| Wheel base (front/rear axle) | mm | 2019/1834 | |
| Front suspension | mm | 1362 | |
| Rear suspension | mm | 935 | |
| Approach angle | º | 16.6 | |
| Departure angle | º | 20 | |
| Min. Turning diameter | m | 24.6 | |
| Min. Ground clearance | mm | 306 | |
| Max. Speed | km/h | 99 | |
| Grade ability | % | 30 | |
| Gas consumption per one hundred miles(diesel oil) | L | 35.4 | |
| Engine model | - | D13 | |
| Engine emission | L | 12.8 | |
| Rated power | kw/r/min | 400/294/1400～1800 | |
| Torque | n·m/r/min | 2000/1050～1400 | |
| Fuel type | Diesel | ||
| Standard of emission | EN III | ||
| Tire size | 315/80R22.5 | ||
| Persons | 3 |
