Max. Lifting weight 1930kg Light-duty Road Wrecker Folding angle of boom 90°

Price Negotiable

Price: USD

MOQ: 1 SET

Delivery Time: 30 working days

Brand: YD

Product Description

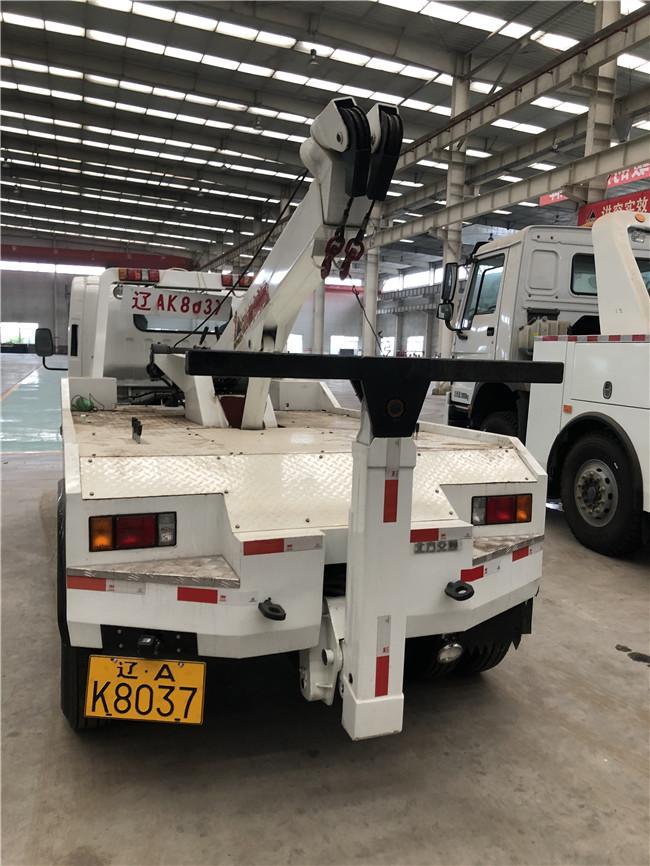

Max. Lifting Weight 1930kg Light-Duty Road Wrecker Folding Angle Of Boom 90°

1,Working Range

KFM5062TQZ10D Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind

2,Main Parameters

Items		Unit	Value
Boom Structure	Rated towing weight	kg	5900
	Max. Lifting weight	kg	1930
	Lifting weight of full extending boom	kg	1410
	Effective length of boom	mm	1678
	Extension traveling of boom	mm	470
	Folding angle of boom	°	90
Under lift Structure	Rated hanging weight	kg	1500
	The height from hook to the ground	mm	4070
	Extension traveling of hanging boom	mm	1400
	Numbers of winch	piece	1
	Max. Pulling power of winch	kg	4000
	Diameter of steel cable	mm	10
	Length of steel cable	m	25
	Min. Speed of steel cable	m/min	4.5
	Rotation angle	°	42
Vehicle Parameters	External dimension	mm	5437×1940×2410
	Chassis model		NKR77LLPACJAY
	Axle base	mm	3360
	Drive		4×2
	The whole weight of empty load	kg	3885
	Load of front axle of empty load	kg	1885
	Load of rear axle of empty load	kg	2000
	The whole weight of full load	kg	5945
	Load of front axle of full load	kg	2035
	Load of rear axle of full load	kg	3910
	Wheel base (front/rear axle)	mm	1504/1425
	Front suspension	mm	1015
	Rear suspension	mm	900
	Approach angle	º	20
	Departure angle	º	18
	Min. Turning diameter	m	≤15.2
	Max. Speed	km/h	100
	Grade ability	%	30
	Min. Ground clearance	mm	190
	Engine model	-	4KH1－TC
	Rated power	kw/r/min	96/3400
	Max. Torque	n·m/r/min	280/1700
	Fuel type		Diesel
	Standard of emission		EN III
	Tire size		7.50-15,7.00-16, 7.50R15,7.00R16
	Persons		2
