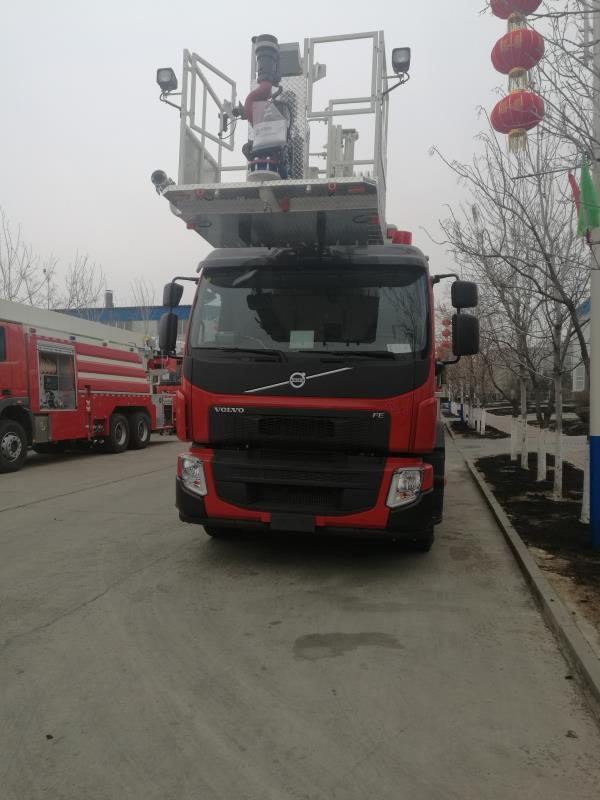

90km/H 32M Working Height 4×2 Drive Aerial Ladder Fire Truck with Platform
90km/H 32M Working Height 4×2 Drive Aerial Ladder Fire Truck with Platform
| Vehicle model | YT32 | ||||||
| chassis | Chassis model | VOLVO FE300 | |||||
| driving | 4×2 | ||||||
| Wheelbase | 4745 mm | ||||||
| engine | Euro V emission standard, water cool, electro control , diesel engine in line. | ||||||
| Engine power |
221Kw/2100rpm
|
||||||
| Generator battery | 12V x 2,100Ah | ||||||
| cabin | 1+1 | ||||||
| Dimension:(L×W×H) | 10000×2500×3750mm | ||||||
| Gross weight | 18000kg | ||||||
| Max. running | ≥90km/h | ||||||
| outrigger | structure | H style | |||||
| longitudinal | 5500mm | ||||||
| transverse | 6000mm | ||||||
| Outrigger leveling | Automatic leveling | ||||||
| Working cage load | 360kg | ||||||
| Max. working height | 32m | ||||||
| Max. working radius | 18m | ||||||
| Ladder structure | Five telescopic ladders | ||||||
| Boom action angle | Ladder -12°——75° | ||||||
| Rotation range | 360°infinite rotation | ||||||
| Outrigger extending time | ≤40s | ||||||
| ladder raised to rated height and rotation 90° | ≤90s | ||||||
| Fire water way system | |||||||
|
Fire monitor |
American AKRON 5177,water and foam use telecontrol monitor. Water flow :950——4800L/min；pressure 0.55MPa. Water reach≥70m,foam reach≥60m. Swivel angle±45 degree； elevation angle 90 degree；depression angle 45 degree.≥100m wireless control. |
||||||
|
Foam Monitor head |
self made stainless steel foam monitor head | ||||||
| Working cage |
nozzles of water spray curtain system to protect cage occupants from radiant heat,control is in cage, manual valve
|
||||||
|
Fire plumbing |
Down part:stainless pipe+aluminium pipe | ||||||
|
Upper:5 ladder pipe, aluminium alloy seamless tube Soft connection pipe:stainless steel knitted wire soft tube |
|||||||
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
