4x2 Drive Six Firefighters Rescue Fire Truck with Powerful Crane and Winch
Price:
Factory price, negotiable
MOQ:
1 UNIT
Delivery Time:
90 days after sign contract
Brand:
CIMC Jindun
Product Description

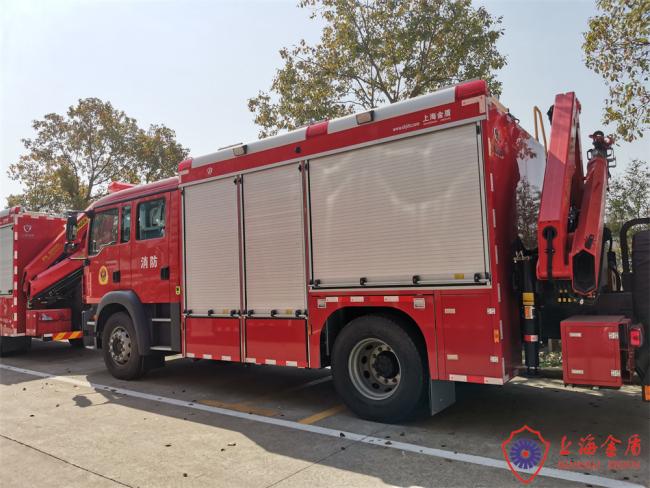

4x2 Drive 6 Firefighters Rescue Fire Truck with Powerful Crane
JY98 rescue fire truck is modified from ISUZU QL1160AMFRY chassis.It equipped with 4X1000W lighting system, Honda ET12000 generator, Finland HIAB 111 B-2CLX cranes and emergency lighting equipment.
I. Vehicle
| Dimensions | 8340×2460×3380 mm |
| The full authorized total mass | 13000kg |
| Vehicle kerb mass | 12550kg |
| The number of rescue equipment | 98 pieces |
| Crew number(including driver) | 6 person |
| Maximum power | 177/240 kW/hp |
II. Chassis:
| Model | QL1160AMFRY |
| Drive form | 4×2 |
| Cab | A modified (1+1+4), rear mounted four with air breathing aircraft |
| Wheelbase | 4500mm |
| Chassis weight | 5170Kg |
| Maximum permissible load | 16000Kg |
| Max speed | 95Km/h |
| Minimum turning diameter | ＜15m |
| Engine | Inline six cylinder, four stroke, water cooled, turbocharged engine. |
| Model | 6HK1-TCNG40 |
| Engine maximum power | 177Kw/ 2400r/min |
| Maximum torque | 706N.M/1450rpm |
| Emission standard | China Ⅳ |
| Clutch | Monolithic, dry, helical spring Gear-box MLD-6QManual gearbox. |
