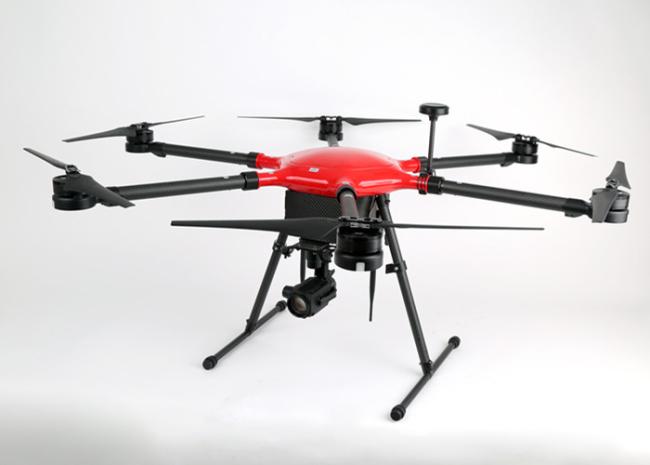

Shanghai 30X Optical Zoom Lens Firefighting Drones Ultra Long Range Inspection

Symmetric motor wheelbase: 1133mm

Overall dimension: 1400 mm x 1300 mm x 430mm((unfold)

480 mm x 430mm x 430mm(fold)

Blade size: diameter * pitch: 21x7 inch

Standard take-off weight: 10kg (including battery)

Maximum take-off weight: 15 kg

Maximum rising speed: 5 m/s

Maximum rate of descent: 2 m/s

Maximum horizontal flight speed:

positioning mode: 5m/s

motion mode: 8m/s

attitude mode: 15m/s

Maximum tilt Angle:

positioning mode: 30°

motion mode: 30°

attitude mode: 30°

Maximum rotation angular velocity: 120°/s

Maximum wind speed: 8 m/s

Standard flight time: 60 minutes (no load)

Maximum load: 7kg

Operating environment temperature: -10℃ to +40℃

Satellite positioning module: GPS/GLONASS or BDSS/GLONASS dual mode dual redundancy

Hover accuracy: vertical: ± 0.5m (when GPS positioning is working normally) horizontal: ± 0.1m (when GPS positioning is working normally)

AC input: 200-240v

Charging power: 1044W*2

Discharge power: 100W (50W x 2)

Charging current range: 1.00-20.0a x 2

Discharge current :2.0A*2

Balance current: 1.0-1.5a/knot

Rechargeable battery type: lithium battery (LiPo)/ high-voltage lithium battery (LiHV)

Lithium battery number: 12 x 2

Charging mode: quick charging, precise charging, battery storage
