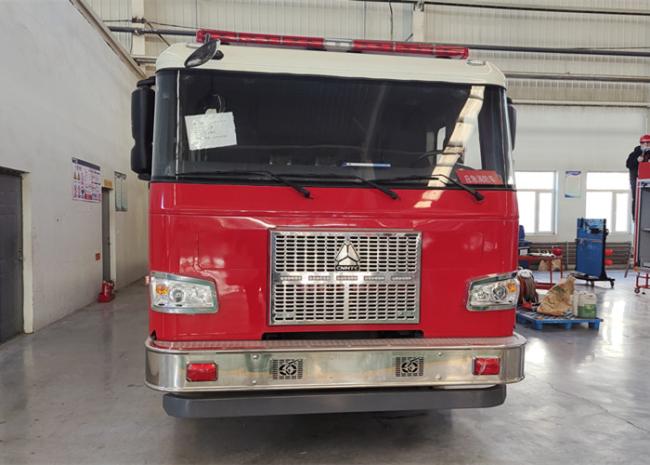

Flattop Forward Type Cab Foam Fire Truck 8x4 Drive
Flattop Metal Forward Type Cab Foam Fire Fighting Trucks 8x4 Drive Type
Dash board and on-board equipment
Cab PTO gear switch
Pump room
| Function switch | lighting, water outlet, water injection, liquid outlet, monitor shot |
| Dash board | Pressure gauge, Water gauge, vacuum gauge, content gauge, tachometer |
Electrical system
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue)
Painting
Red paint: cab, body (shutter doors, except decorative strip)
Other: according to customers requirements
Onboard document
- Vehicle operation and maintenance manual
- Chassis operating manual
- Chassis operation and maintenance manual
- Chassis quality warranty card
- Chassis certificate, vehicle certificate, 3C logo
- Engine code copy
- Chassis code copy
- Onboard equipment list
- Follow-up service card
- Hand-over list
Onboard equipments
| No. | Item | QTY | NOTE |
| 1 | Suction hose 150×2000mm | 4 | Snap-type |
| 2 | Fire hose 65mm×20m | 6 | Snap-type |
| 3 | Fire hose 80mm×20m | 6 | Snap-type |
| 4 | Water filter | 1 | Snap-type |
| 5 | Delivery bead FFS80 | 1 | three-way wye Snap-type |
| 6 | Collecting breeching FJ150 | 1 | Snap-type |
| 7 | Increaser KJ65/80 | 2 | 80 turn 65 |
| 8 | Increaser | 4 | 80 male and 65 male turn |
| 9 | Suction coupling | 1 | DN150 snap-type to DN100 screw type |
| 10 | Suction wrench FS150 | 2 | |
| 11 | Hose bandage FP470 | 4 | |
| 12 | Hose strap FG600 | 2 | |
| 13 | Pillar hydrant wrench FB450 | 1 | |
| 14 | Underground hydrant wrench FBX800 | 1 | |
| 15 | Air foam gun PQ8 | 2 | |
| 16 | hydraulic monitor QZG3.5/7.5 | 2 | snap-type |
| 17 | Crowbar CT1 | 1 | |
| 18 | Spade 2# | 1 | |
| 19 | Fire axe GFJ817 | 1 | |
| 20 | Foam wrench | 2 | |
| 21 | Foam hose | 1 | DN50 |
Equipment layout principles
1, According to combat programming and combat development design
equipment integration
2, According to human body engineering principle design all kinds of equipment frames.
3, According to using logic and frequency of use place equipment
4, 1-2 action can take any equipment standing on the ground or pedal
5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp
