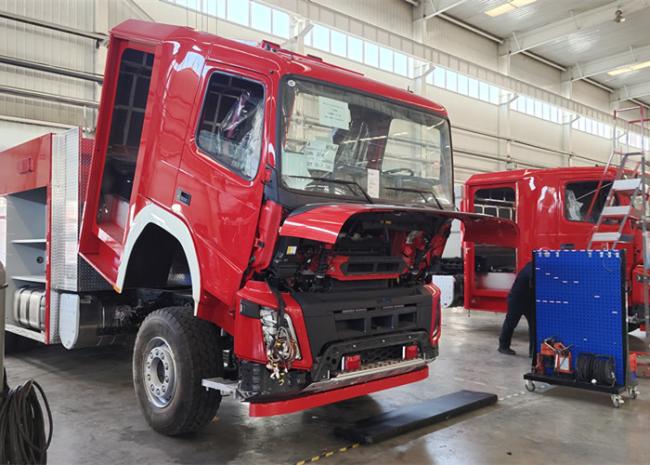

206kw Foam Fire Truck with 6500L Water 1500L Foam Shooting Range 65 Meters
206kw Foam Fire Truck with 6500L Water 1500L Foam Shooting Range 65 Meters
Vehicle
| Dimension (L×W×H) | 8475×2500×3400 (mm) |
| Gross weight | 19800 (kg) |
| Complete vehicle shipping mass | 11600 (kg) |
| Seat (inc. driver) | 2+4 |
| Max. power |
206kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5207M4617D5 |
| Drive type | 4x2 |
| Cab | Four door lengthen cab |
| Wheelbase | 4600mm |
| Max. speed | 100km/h |
| Min. turning diameter | ≤20m |
| Approach angle | 16° |
| Departure angle | 14° |
| Engine type | Pressure combustion, In-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine |
| Model | D10.28-40 |
| Max. torque | 1190N.M |
| Emission standard | China IV |
| Clutch | pull type diaphragm |
| Gearbox | Manual, 10 forward gear |
Equipment tank
| Material | Q235A high quality steel |
| Structure | Welding structure |
| Equipment compartment door | the light quality aluminum alloy, with shutter doors, lightweight and reliable. |
| Internal structure | the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. |
Pedal plate
- Location: At the bottom of roller shutter door.
- Material: Steel frame covered by aluminum alloy checkered plate.
- Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
