Anti Corrosion Dry Powder Stainless Steel 304 Tank Foam Fire Truck 1390Nm
Anti Corrosion Dry Powder Stainless Steel 304 Tank Foam Fire Truck 1390Nm
Equipment tank
| Material | Q235A high quality steel combine with porous steel |
| Structure | Split type welding structure |
| Equipment compartment door | The light quality aluminum alloy, with shutter doors, lightweight and reliable. |
| Internal structure | the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. |
Liquid tank
| Capacity | Water: 10000kg Foam: 2000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Pressure | 1.0MPa |
| Device |
2 manhole 1 overflow device 2 liquid level sensor 2 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92 |
Pipeline
| Outlet pipeline |
2×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet |
1×DN150 suction coupling 1×DN150 pneumatic butterfly valve |
| Monitor pipeline |
1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Pump drive system | NMV200 |
| Drive shaft | High balance precision |
Fire monitor
| Model | AKRON 3425 |
| Position | Rear roof |
| Flow | 80L/s |
| Pressure | 1.0MPa |
| Range | water≥75m ,foam≥65m |

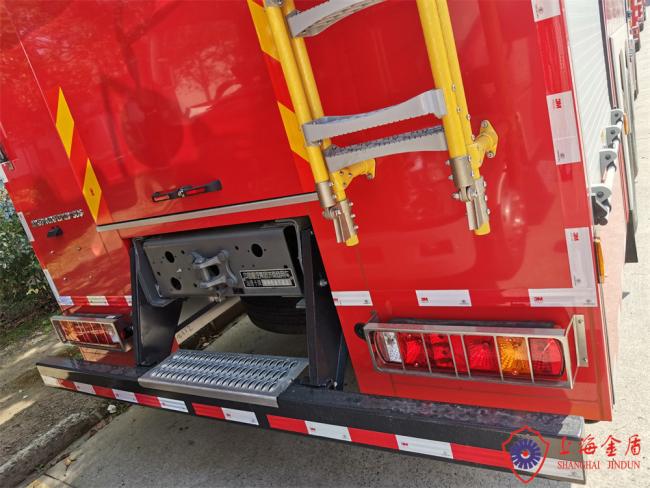

Pedal plate
- Location: At the bottom of roller shutter door.
- Material: Steel frame covered by aluminum alloy checkered plate.
- Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
