25M Height 4000L Foam and 18550L Water Water Tower Ladder Fire Truck 6×4 Driving
25m Height 4000L Foam and 18550L Water Water Tower Ladder Fire Truck 6×4 Driving

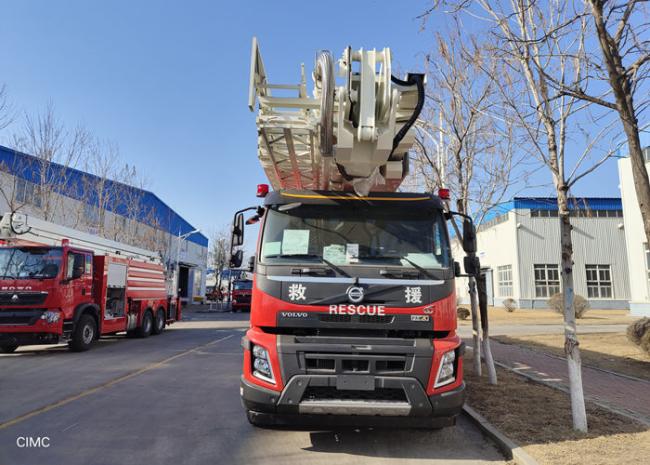

JP25 high spraying water tower fire truck is a new type of fire fighting vehicle. We have independently designed and developed of the vehicle in order to enrich the functional configuration of the high pressure spraying vehicle and improve it's combat capability.
The P25 high spraying water tower fire truck could modified from Volve chassis, Mercedes-Benz chasis or Scania chassis based on customer's request. It equipped with a two-folding boom which max working height is 25 meters.
Tyre
| Front axle | 4× 385/65 R22.5 highway tires |
| Rear axle | 8× 315/80 R22.5 traction tires |
| Rim | 11.75×22.5/9.00×22.5 |
| Spare wheel | 1×315/80 R22.5 highway tire with rim |
PTO
| Model | ZF NMV221, Full power |
| Specification parameter |
Anti-clockwise Speed ratio1.5 Max. torque 1300N.m 120mm flange plate |
Boom structure
| 2 folding boom, welded with high-strength steel | |
| Max. working height | 25m |
| Max. working radius | 10m |
| Rotation range | 0-360° |
| Boom extending time | ≤80s |
| Outrigger extending time | ≤45s |
| Hydraulic system pressure | 20MPa |
| Max. wind velocity | 12.5m/s |
| Outrigger longitudinal and transverse | 5950×2040mm |
| Upper boom change angle | 0-80° |
| Lower boom change angle | 0-160° |
| Allowed working range: Shown as pic1 | |
Fire fighting performance
| Spray flow/pressure | 70 L/s @ 1.6MPa |
| Spray range(water/ foam) | ≥70/60m |
| Foam proportioner | 0.5-10%(full-automatic) |
Fire pump
| Manufacturer | HALE |
| Model | 8FC-150 |
| Flow |
150 L/s @ 1.03MPa |
| Vacuum pump | Vacuum degree≥85KPa, priming time≤50s |
Braking system
ABS function, front axle disc brake/rear axle drum brake
352CC air compressor
FAQ:
1. Q:Are you a factory or a trade company?

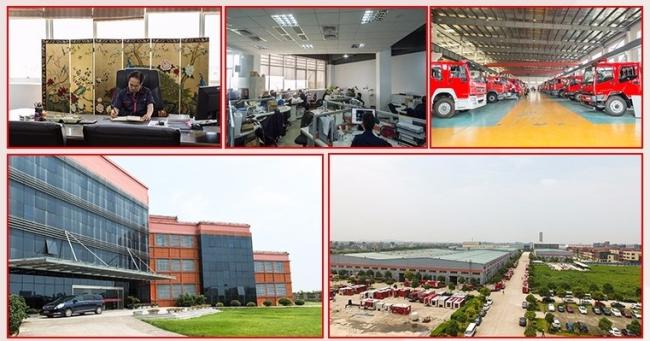

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
