Shanghai Jindun 380V AC 40Pcs Industrial Fire Truck , 1390Nm Fire Rescue Vehicles
Shanghai Jindun Rescue Equipment Quantity 40 Pcs Rescue Fire Truck
Product Introduction:

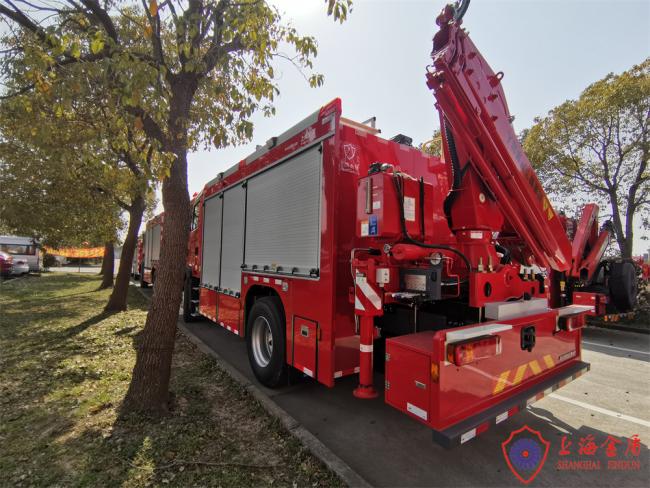

The structure of the rescue vehicle includes the chassis, the upper mounted box body (equipped with rescue equipment), the power take-off device and transmission device, the generator (shaft belt type or independent generator set), winch (hydraulic or electric), the crane (generally folding arm type, behind the vehicle body), lifting lighting system and electrical system. According to the different uses of the fire rescue vehicles, the specific configuration of the vehicles is different, such as the crane, winch, generator, lifting lamp, etc. The fire rescue vehicles are divided into ordinary rescue vehicles, chemical rescue fire trucks, special rescue vehicles (such as earthquake rescue vehicles).
Product Parameter:
Vehicle
| Dimension (L×W×H) | 8655×2500×3500mm |
| Gross weight | 13066kg |
| Complete vehicle shipping mass | 12616kg |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
Lift lighting system
| Manufacturer | American WB imported with original packaging |
| Model | NS6.4-20-4000 |
| Above ground level | 8m |
| Classification of wind resistance | 110km/h(China level 11) |
| Lamps specification | Quartz halogen lamp |
| Lifter material | Maraging 6061 T6 |
| Lamps power | 4×1000w |
| Lamps horizontal rotating angle | 360° |
| Lamps vertical rotating angle | 360° |
| Lighting life | ≥2000 hours |
| Illumination | ≥86000lx |
| Contraction time | ≤60S |
| Warranty period | 2 years |
| Remote control type | Drive by wire |
| Specialty | Master reset function |

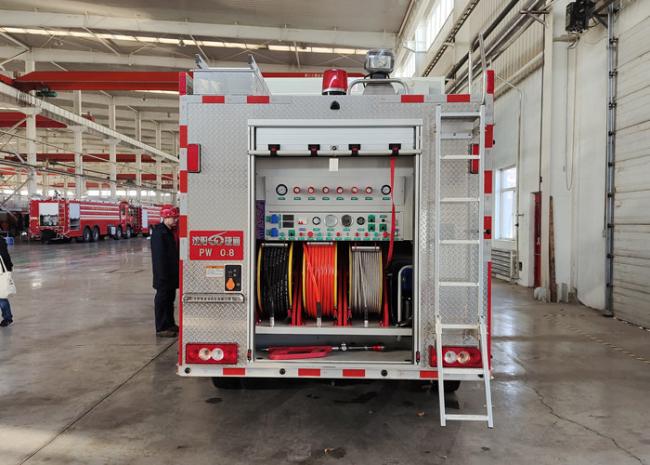

Equipment tank
| Manufacturer | SHANGHAI JINDUN |
| Material | Q235A high quality steel combine aluminium alloy sections |
| Structure | Welding, lap structure, skin, floor, interior panels use rust-proof aluminum plane, pedal tread surface, car roof using aluminum patterns. |
| Equipment compartment door | the light quality aluminum alloy, with shutter doors, lightweight and reliable. |
| Internal structure | the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate
Structure: adopt the gas springs plus shutter fasten, safe and
Reliable, each petal plate bearing ≥150Kg
Company Profile:
Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”
The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
