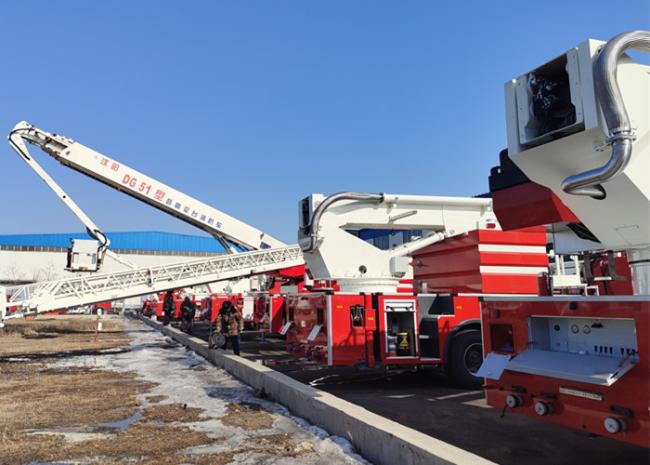

Multi-Purpose 70m Working Height Aerial Ladder Fire Truck for Rescue and Firefighting
Multi-Purpose 70m Working Height Aerial Ladder Fire Truck for Rescue and Firefighting
The use of variable displacement pump ensures the stability of hydraulic system. In the operation of boom, the hydraulic oil pump can automatically determine the oil supply quantity according to the amount of oil required by the boom operation. In this way, the oil temperature of hydraulic system is not only prevented, but also the stability of the boom operation is guaranteed.The rational use of high-power pumps, water cannons and water tanks and foam tanks makes the vehicle have the function of high-power foam fire trucks.
| Dimension:(L×W×H) | 13600×2500×3900mm | ||
| Full mass | 42600kg | ||
| Max running | ≥85km/h | ||
| outrigger | structure | H style | |
| longitudinal | 8690mm | ||
| transverse | 7035mm | ||
| Outrigger leveling | Auto leveling+ manual leveling | ||
| Working cage load | 500kg | ||
| Max. Working height | 70m | ||
| Max. Working radius | 24m | ||
| Boom structure | 6down telescopic boom+2 up telescopic boom | ||
| pump |
American WATEROUS CX centrifugal fire pump flow:100 L/S @ 1.0 Mpa80 L/S @ 1.60Mpa Inlet flange:DN150,outlet flange:DN100 |
| Fire monitor |
American Elkhart:Scorpion RF 8294-EXM+SM-1250E,water/foam use electronic control monitor. Flow adjustment 1150——4800L/min；working pressure 0.55MPa. reach(water)≥55m. reach(foam)≥50m.(the reach will be different depending on water flow) Swivel angle ±45 degree； up angle 90 degree；depression angle 35degree. ≥100 m wireless control . |
| Foam head | Equip with foam monitor head |
| Water way control |
Water way control mode:pneumatic control The position is left side of vehicle |
|
Fire plumbing |
Down part:stainless pipe + aluminum pipe | ||
|
Upper part: telescopic water pipe: aluminum alloy seamless tube Folding water pipe: aluminum alloy seamless tube Soft connection pipe: rubber soft tube |
|||
|
Water coupling |
coupling | spec | Valve |
| External Water Supply | 2XDN80 | Hose coupling with cover lid | |
| Upper Monitor inlet | 1XDN125 | Pneumatic butterfly valve | |
| Water supply from end of vehicle | 2XDN80 | Manual ball valve with cover | |
| Coupling type:quick coupling or slow coupling option | |||
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
