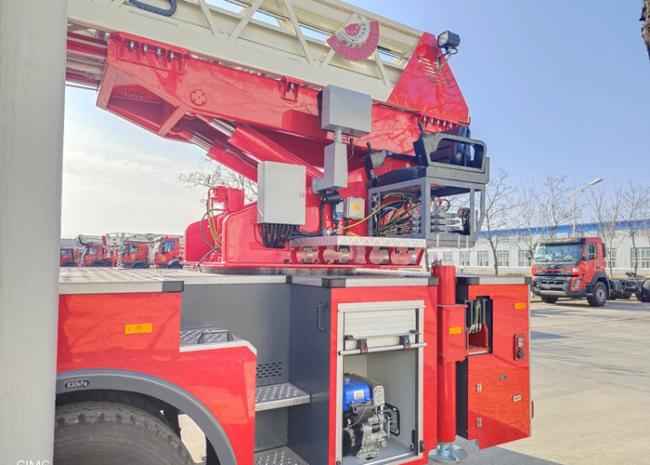

CIMC 250kw Single Cab 32m Aerial Ladder Fire Truck with 400kg Working Cage
CIMC 250kw Single Cab 32m Aerial Ladder Fire Truck with 400kg Working Cage
1, Vehicle
| Maximum working height | 32 m |
| Maximum working radius | 16 m |
| Maximum bearing weight of working bucket | 400 kg |
| Liquid carrying capacity (water / foam) | 2000/1500 L |
| Engine power | 250 kw |
| Overall dimension | 10800 × 2500 × 3850mm mm |
2, Chassis
| Model | Beiben 2534 (to be determined) |
| Driving mode | 6 × 4 |
| Wheelbase (full load) | 4800 + 1450 mm |
| Exhaust emission | National Three |
2.1 Engine:
| Type | in line, water cooled, supercharged, intercooled, six cylinder |
| Cylinder diameter × stroke | 126 × 130 |
| Displacement | 9.726 L |
| Rated power | 250 kw / 2200 RPM |
| Maximum torque | 1350nm / 1200 ~ 1600 RPM |
| Fuel consumption | 210 g / kW. H |
2.2 Clutch
Model: 430, single piece, dry type, diaphragm spring, pull type
2.3 Transmission
Model: 12JS200T+QH50
Type:Right shift with syncyhronizer, 9 forward, 1 reverse, direct gear .Mechanical transmission with full set of n71/1c power take-off, and the power take-off interface is connected with 8-tooth spline.
Allowable input torque (N.m):1800
2.4 Steering gear
2.4.1 Model: right ZF8098
2.4.2 Form: hydraulic power
2.5 Steering front axle
2.5.1 Model:VR4/01D-7.5
2.5.2 I-shaped structure, right steering axle, friction plate 160mm, brake chamber 30mm
2.5.3 rated load (T): 7.5
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
