Howo Chassis 4×2 Drive Fire Fighting Vehicles With Manual Control Monitor
Howo Chassis 4×2 Drive Foam Fire Vehicle With Manual Control Monitor

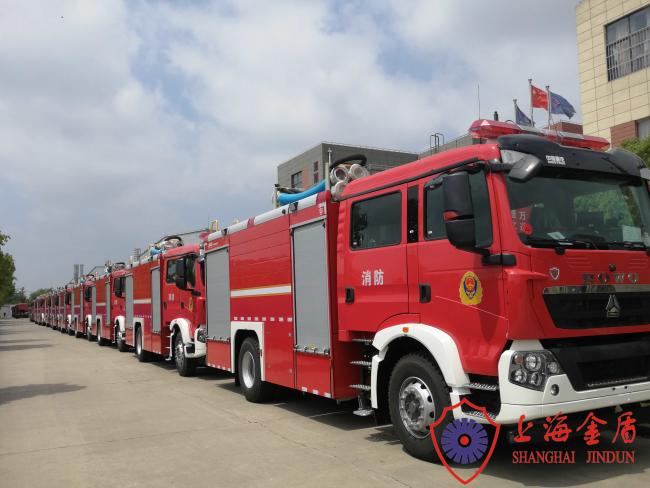

The foam fire truck is refited from the Chassis produced by SinoTRK Jinan Truck Co., LTD in China. The whole layout is reasonable . Equipment compartment, liquid tank and pump room are adopt split structure with novel and coordinated appearance. China brand fire pump is installed on rear of the vehicle and fire monitor on roof. The compact structure makes easy operation and maintenance.
The vehicle carries 8000L fire extinguishant and with fast speed. It's mainly used in petrochemical enterprises, oil terminals, oil fields, airports, and full-time fire brigades in large and medium-sized cities and enterprises.
1. Vehicle
| Dimension (L×W×H) | About 8475×2500×3400 (mm) |
| Gross Vehicle weight | 19800 (kg) |
| Curb Weight | 11600 (kg) |
| Max. power | 213Kw/290HP |
| Cabin | 2+4 seats, double cabin |
2. Chassis
- Brand : Sinotruk Howo
- Drive type : 4×2
- Wheelbase : 4600 mm
- Rated Speed : 100 km/h
- Engine type : Pressure combustion, In-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine.
- Gearbox : Manual
3. Fire pump ( Chinese brand )
- Pressure/Flow : 3600 L/min at 1.0 Mpa
- Priming time : ≤ 50s
- Suction depth : 7m
4. Fire fighting system
| Suction inlet | 1 outside suction and valve |
| Monitor pipeline |
1monitor pipeline 1 butterfly valve |
| Outlet |
4 ordinary pressure outlets 1 ball valve |
5. Pump drive system
| PTO | Sandwich type |
| Model | YTQ600F |
| Transmission shaft | High balance precision transmission shaft, use intermediate support connection |
6. Liquid Tank
| Capacity | Water: 6000 Liters, Foam:2000 Liters |
| Material | High Quality Stainless Steel 304 |
| Structure | Total side girder structure |
|
Device
|
2 manholes 2 overflow devices 2 liquid level sensors 2 drain outlet with valves 4 filling pipe ends |
| Technical requirements | Conform to rule GA39.4-92 |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's the delivery time?
A: 1) 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
2) ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
3) European brand chassis 9 months upon receipt of advance deposit.
Any other questions, please do not hesitate to contact with us.
