Home Solar Panel Dc To Ac Inverter Sine Wave , 0.5 - 2KW Solar System Inverter High Frequency
Home useage Solar Power Inverter Modified Sine Wave High Frequency 0.5-2KW
Product Description:
CNS111 Series is a AC/Solar charging Off grid Hybrid Inverter with built-in enhanced AC charger and built-in solar charger controller up to 40A. Selectable Input voltage ranges/AC charging current/ AC or solar charger priority. Intelligent 3-stage charger control for efficient charging and preventing over charger. Auto restart upon AC recovery and LCD+LED display. Multiple protections: low battery alarm, low battery shutdown, over charger protection, overload protection, over temperature protection, short circuit protection
Technical specification:
| Parameter/Model | CNS111 1K-12 | CNS111 2K-24 | |
| AC input | |||
| Nominal Power | 1KVA/720W | 2KVA/1300W | |
| Input voltage wave form | Sinusoidal(utility or generator) | ||
| Nominal input voltage | 230VAC | ||
| Selectable voltage range | 165-270VAC±4%(narrow range); 85-270VAC±4%(wide range) | ||
| Max. AC input voltage | Max. 270VAC | ||
| Frequency | 50Hz 60Hz | ||
♦ Product specifications are subject to change without further notice.

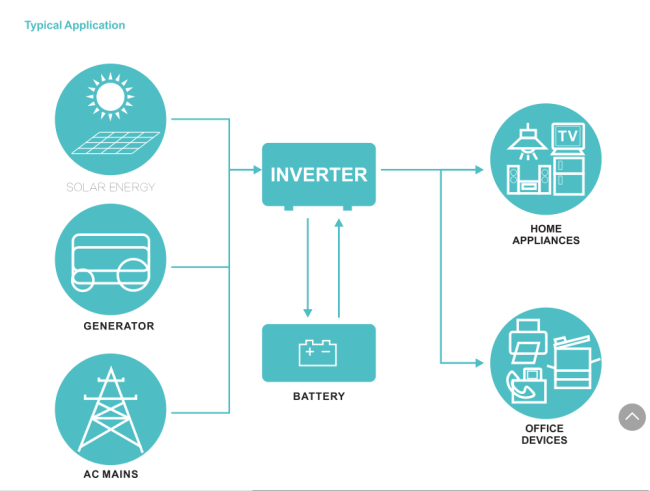

Typical Application:
