Comprehensive Protections Solar Power Inverter With LCD + LED Display
Price:
Negotiable
MOQ:
20 pieces
Delivery Time:
5-8 days for sample order, 15-21 days for large quantity
Brand:
CONSNANT
Product Description
Comprehensive Protections Solar Power Inverter With LCD + LED Display
Features:

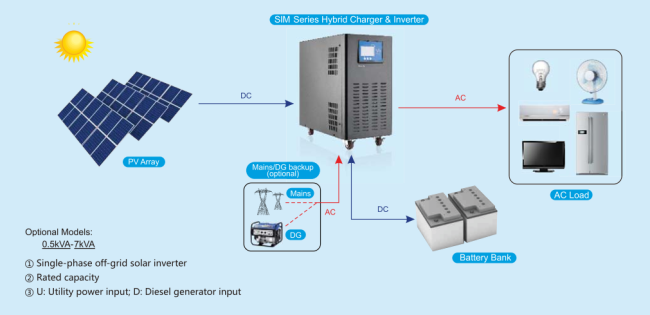

- Integrated design with MPPT controller, inverter and UPS module
- MPPT controller, maximize the utilization of solar panels
- Pure sine wave output
- Adopt the isolated transformer, safe and stable
- Mains/diesel generator input interface (optional)
- Excellent overload capacity
- Intelligent battery management function
- Comprehensive protections
- LCD display + LED status indicator
- RS232 Communication (optional)
FAQ:
Q1: What's included in products?
A: It is included Inverter unit, user manual, cable(optional)
Q2. Your UPS meet CE requirements?
A:Our UPS is with the certificate of CE, ISO and Chinese TLC certificates.
Q3: Can we change the shape, size, color or printing based on the original design?
A: Yes, and OEM, ODM accepted
Q4:. Can you design one specially?
A: Yes
Technical Specifications:
| Model NO. Inverter | 600 | 400 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | |
| Rated Power (W) | 400W | 600W | 800W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Peak Power (W) | 1200W | 1800W | 2400W | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W |
| System Volt. | 24V | 24V/48V | 48V/96V | |||||||
| Inverter Output Volt. | 110V/220V±5% | 220V ±5% | ||||||||
| Output Frequency | 50/60Hz±1% | |||||||||
| Efficiency | >80% | >85% | ||||||||
| Overload Capacity | 105-120% 30s; 120*150% 10s; >150% 5s; Short Circuit 10ms | |||||||||
| Output Wave | Puse Sine Wave | |||||||||
| Solar Charge Controller | ||||||||||
| Charge Type | MPPT | |||||||||
| PV Recommend Power | 1500W | 1500W/3000W | 3000W/6000W | |||||||
| PV Input Volt. Range | 35-90V | 35~90V(24V)/70-150V(48V) | 70-150V(48V)/150-300V(96V) | |||||||
| Input Rate Volt. | 40V | 40V/102V | 102V/170V | |||||||
| Max. Output Current | 50A | 50A | 50A | |||||||
| Floating Charging Volt. | 26.80V | 53.5V | 107V | |||||||
| Equalization Charging Volt. | 28.8V | 57.6V | 115.2V | |||||||
| AC Battery Charger | ||||||||||
| AC Input Volt. | 90~125V (110V) / 180~250V (220V) | |||||||||
| Input Frequency | 50/60Hz±3% | |||||||||
| AC Charge Current | Standard 10A; Max. : 15A | |||||||||
| AC By-pass | ||||||||||
| Transfer Time | <8ms | |||||||||
| AC Input Wave Form | AC or Generator (Sine Wave) | |||||||||
| General | ||||||||||
| Display | LCD + LED | |||||||||
| Display Content | PV Status; Battery Capacity; AC Input & Output Volt.; Load; Running Status | |||||||||
| Cooling Method | Fan Cooling | |||||||||
| Communication | RS232 (Optional) | |||||||||
| Noise Emission [dB (A)] | <60dB (1m) | |||||||||
| Operating Temp. Range | -20~50°C | |||||||||
| Storage Temp. Range | -15~70oC | |||||||||
| Operation Humidity | 0-90%RH Non-condensing | |||||||||
| Dimension (mm) | 410x160X210mm | 480x190x345mm | 480x240x480mm | |||||||
| Weight (KG) | 8KG | 9KG | 10KG | 11 KG | 19KG | 22KG | 35KG | 40KG | 45KG | 54KG |
