Pure Sine Wave Off Grid Solar System , 1800 / 3600 / 800W Off Grid Inverter
Price:
Negotiable
MOQ:
50 pieces
Delivery Time:
5-7 days for sample, 15-21 days for large quantity
Brand:
CONSNANT
Product Description
Sine Wave Solar Power Inverter Off - Grid Solar System

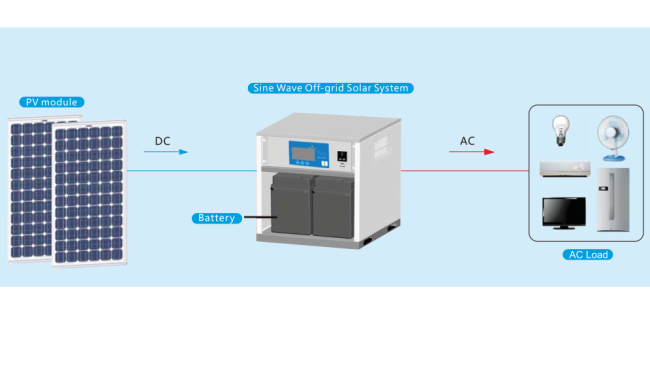

Sine wave off-grid solar system
Features:
The product is integrated design with controller, inverter and battery box, to garranttee the reliable power supply, and safety performance. The intelligent battery management, comprehensive protections, RS232 communicationand LCD smart display are another key feature of the sine wave off-grid inverter.
Application:
Electric fan, washing, ice-box etc
Specifications:
|
Model NO. MPPT Solar Controller |
CNST400 | CNST600 | CNST800B | CNST1OOO | CNST2000 | CNST3000 | CNST3500 | CNST4000 | CNST5000 | ||
| Max. PV Input Power | 1800W | 3600W | 8000W | ||||||||
| MPPT Tracking Volt. | 35-90VDC | 65-150VDC | 150-250VDC | ||||||||
| Max. Charge Current | 60A | 50A | |||||||||
| Inverter | |||||||||||
| Output Power | 400W | 600W | 800W | 1000W | 2000W | 3000W | 3500W | 4000W | 5000W | ||
| Output Volt. (VAC) | 110V/220V/230V/240V±5% | ||||||||||
| Output Frequency | 50/60(Hz)±3% | ||||||||||
| Output Wave Type | Pure Sine Wave | ||||||||||
| Efficiency | > 85% | ||||||||||
| Over-load Capacity | 100-120% 30S; 125-150% 10S; 150-200% 5S; Short Circuit 10mS | ||||||||||
| AC Charger | |||||||||||
| AC Input Volt. | 90-125V (110V) / 180-250V (220V) | ||||||||||
| AC Input Frequency | 50/60Hz | ||||||||||
| Charging Current | Standard 10A; Max.:15A | ||||||||||
| Battery Box | |||||||||||
| BAT Type Recommend | Lead-acid battery | ||||||||||
| BAT Box Size | 2*200AH/12V | 4*200AH/12V | 8*200AH/12V | ||||||||
| BAT Rated Volt. | 24VDC | 48V | 96V | ||||||||
| General | |||||||||||
| Display | LCD + LED | ||||||||||
| Display Contents | PV status, battery capacity, AC vol tage, load percentage | ||||||||||
| Inverter Protection | Overload, Low voltage, SPD, Over temperature, Short circuit etc. | ||||||||||
| Cooling Method | Fan cooling | ||||||||||
| Communication | RS232 (optional) | ||||||||||
| Operation Temp. | 0-+40 (°C) | ||||||||||
| Operation Humidity | 0-90% (non-condensing) | ||||||||||
| Storage Temp. | 15-+50(°C) | ||||||||||
| Max. Operation Altitude | 3000 (>3000m derating) | ||||||||||
| Noise Emission [dB (A)] | <55 (1m) | ||||||||||
| Protection Degree | IP20 | ||||||||||
| Dimension(W*H*D mm) | 400M00*400mm | 600*600*600mm | 600*600*1200mm | ||||||||
