EN10045 5.4 m/s 500J 150° Pendulum Impact Testing Machine

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 7-10 worker days

Brand: JINHAIHU

Product Description

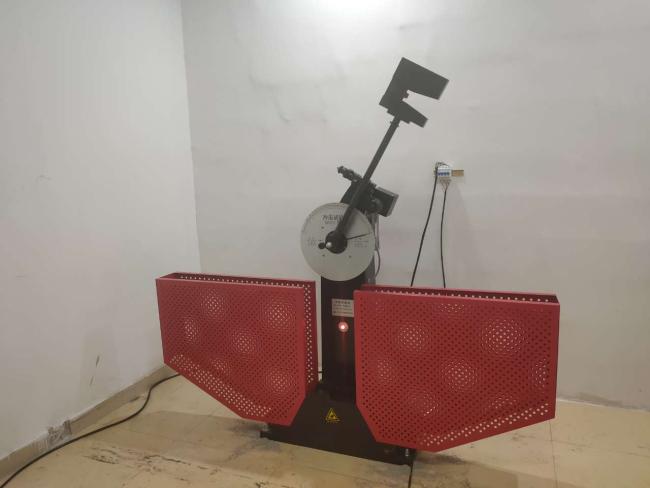

JB-500B Semiautomatic Charpy Impact Testing Machine

1.Application:

JB-B Semiautomatic Charpy Impact Testing Machine is used for measuring the metal material resistance

performance under dynamic load, in order to determine the material properties under dynamic load.

2.Standards:

ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.

3.Technical Specifications:

Model	JB-500B
Impact Energy	500 J , 250 J
Control Methods	Electric Control
The Distance Between The Pendulum Shaft And Impact Point	800 mm
Minimum Reading Value	2 J
Impact Speed	5.4 m/s
Pre-rising Angle Of The Pendulum	150°
Specimen Bearer Span	40+0.2 mm
Round Angle Of The Jaw	R 1.0~1.5 mm
Round Angle Of Impact Edge	R 2.0~2.5 mm (Special Order: R8±0.05 mm)
Thickness Of Impact Blade	16 mm
Angle Accuracy	±0.1°
Pendulum Torque	M=160.7695N.m 80.3848N.m
Impact Pendulum Configuration	250 J, 1 PC; 500 J, 1 PC
Standard Specimen Dimension	10 mm * 10 (7.5 or 5) mm * 55 mm
Power Supply	3phs, 380V, 50Hz
Dimensions	2124mm * 600mm * 1340mm
Net Weight	580 KG

4. Features:

4.1 The principle machine of the testing machine has single supporting column structure, cantilever type

pendulum hanging mode; the pendulum body is U-shaped.

4.2 The impact cutter is installed and fixed by screws and is convenient and easy to be replaced.

4.3 Safety guard pin is arranged on the principle machine which is also provided with safety guard net.

5.Configurations:

5.1	Main Unit	1 SET
5.2	Pendulum(JB-500B, 500J/250J)	2 PCS
5.3	Span Specimen Plate (L = 40mm)	1 PC
5.4	Specimen Centering Plate (L = 40mm)(U, V)	1 PC
5.5	Stripping Attachment	1 PC
5.6	Internal Hexagonal Wrench (S=12mm)	1 PC
5.7	Anchor Bolts (M16x300mm)	4 PCS
5.8	Adjustment Wedges	4 PCS
5.9	Impact Testing Safety Guard Net	1 SET
