Tube Transmittance Tester For Plastic Pipes And Fittings
Tube transmittance tester/Plastic pipes and fittings - Determination of light – proof
Summarize:
Tube transmittance tester can be used to measure the opacities of plastic pipe and pipe fittings(the result is displayed as a percentage). The instrument adopts industrial touch screen control and touch screen operation. With automatic analysis, record, storage, display functions. The series of products are widely used in scientific research institutions, colleges and universities, quality inspection departments, production enterprises.
Meet standard:
GB/T 21300-2007
ISO7686:2005,IDT
Characteristic:
1. Four samples can be tested at the same time, or less than four samples can be tested by selection.
- Industrial-grade touch screen with strong anti-interference ability is used as man-machine interaction interface, and the operation process is simple and convenient.
- The luminous flux acquisition system adopts high-precision optical collector and at least 24-bit analog-to-digital conversion circuit.
- It has the functions of automatic identification, positioning, tracking and moving test for four samples and 12 measuring points, that is, automatic measurement can be realized.
- With automatic analysis, record, storage, display functions.
- The instrument has reasonable structure, stable performance, high efficiency, energy saving, simple operation and convenient maintenance.
- Adopt grating automatic replacement system, with automatic control grating movement, automatic positioning, automatic tracking sample according to sample specifications
- The sample holder has the function of automatically positioning the sample to ensure that the surface of the sample is perpendicular to the incident light.
- It has the function of automatic identification, positioning, tracking and moving test for 4 samples (3 measuring points for each sample) of the same pipe sample continuously at one time.
- Supporting a set of 540nm enzyme tag analyzer, including transmittance 3.16%, 10%, 31.6%, 63% standard material each piece, used for instrument calibration.
![]()
Technical specification:
| Control mode | ARM core board control, automatic test process, touch screen operation, display. |
| Pipe Scope | Φ16～Φ40mm |
| Optical flux acquisition system | Using a high-precision optical collector and a 24-bit analog-to-digital conversion circuit |

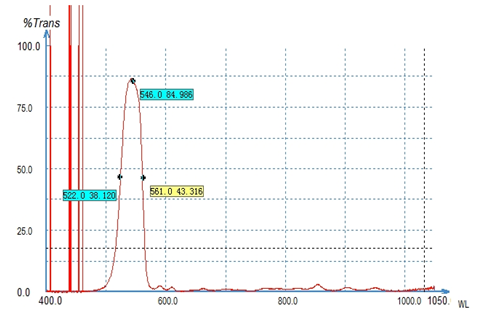

| Optical wavelength | 545nm±5nm,LED energy-saving standard light source |
| Luminous flux resolution | ±0.01% |
| Luminous flux measurement error | ±0.05% |
| Raster for Five kinds of specifications | 16,20,25,32,40 |
| Automatic loading/unloading speed | 384mm/min |
| Automatic moving distance in/out of warehouse | 160mm±0.5mm |
| Sample tracking system movement speed | 420mm/min |
| Positioning accuracy of sample tracking system | ±0.1mm |
| Specimen holder for | 16, 20, 25, 32, 40. |
