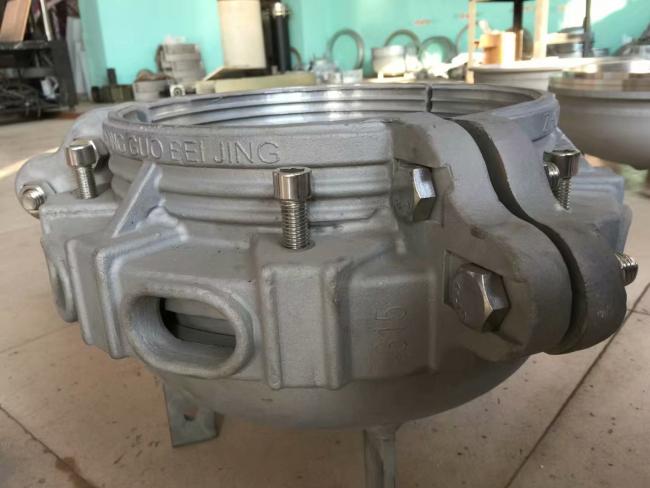

Dn315mm Stainless Steel Hydrostatic Plug Caps For Internal Pressure Testing Of Pvc Pipes
Stainless steel caps for internal pressure testing of PVC pipes
Working principle:
Stainless steel caps for internal pressure testing of PVC pipes are used for sealing the test pipes. High temperature resistant silicone seal rings embedded in the stainless steel caps seal groove, the caps metal rings press the silicone seal rings.
The O-ring which is deformed by external force acts as a seal.
Structural composition:
Semi circular base, sealing ring, pressing ring , clamp, fastening bolts, compression bolts and vent valve.
Application:
Mainly used for sealing of PVC, PE, PP-R, ABS, composite pipe samples for hydrostatic test, bursting test, negative pressure test and so on.
Fixture structure:
Half round pot form,easy for installation , no leakage, convenient operation.
Different diameter can be selected according to customers’ requirement, the material is 304# stainless steel or carbon steel
Standards:
GB/T 6111, ISO1167, ASTM D 1598/1599,
Other models:
φ10, 16, 25, 32, 40, 50, 63, 75, 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315, 355, 400, 450, 500, 560, 630, 710, 800, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000mm and British standard, Amercian standard, etc.
Technical parameter:
|
Product name
|
Stainless steel caps
|
|
Color
|
Silvery white
|
| Outline dimension | φ420*340mm |
| Applicable pipe's diameter | φ315~φ318mm |
| Max. Pressure | 6MPA |
| The size of seal ring | φ310*12mm |
| End cap connector | M2*1.25, 1/4'', 3/8"(customizable) |
| Type | Type A |
|
Packing
|
Standard export wooden
|
|
Certificate
|
ISO
|
|
Delivery time
|
5~7 days
|
