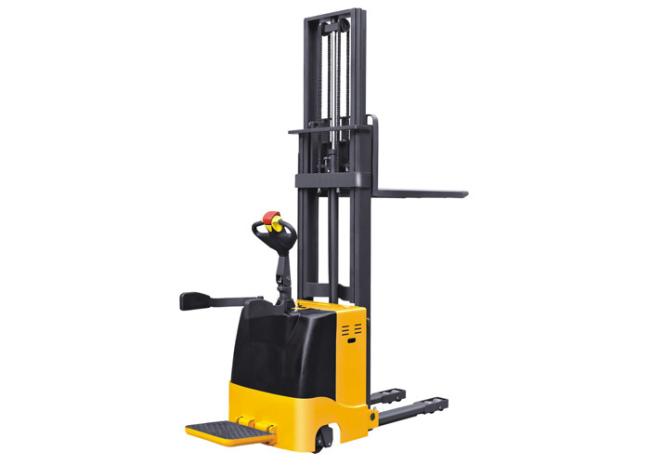

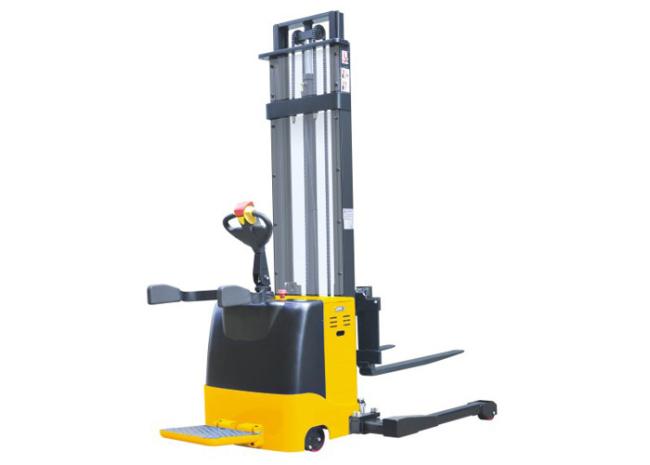

Krupp mast 1500kg full electric pallet stacker with 3500mm lifting height


Quick Details:

Description: full electric pallet stacker CDD15H
Capacity: 1500kg
Max. lifting height: 3500mm
Aisle width for pallets 1000*1200 crossways: 2590mm
Aisle width for pallets 800*1200 lengthways: 2545mm
Travel speed, laden/unladen: 4.2/6.5km/h
Lifting speed, laden/unladen: 0.08/0.12m/s
Lowering speed, laden/unladen: 0.15/0.12m/s



Advantages:​​​

• Emergency reverse device.
• Built in unloading valve to protect the electric pallet stacker from overloading and improve the reliability of it.
• Emergency power-off switch.
• Stepless speed change control.
• Folding thickening pedals and guardrails enhance operator comfort and safety.
• The balancing wheel with spring adjusting structure is abrasion resistant and has good stability.
• Adopt imported mast.
• Low voltage protection system to prolong the service life of battery.
• The advanced CANbus technology simplifies the lines and enhances the reliability of the whole electric pallet stacker.
• Holzer sensors reduce wear and tear of electronic components and increase service life.



Option:​​​

• Straddle legs.
• Adjustable forks.
