AC / DC Type Electric Forklift Truck 2000kg With Full Free Lifting 3280kg Service Weight
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
AC or DC type 2000kg electric forklift with side shift and full free lifting
Quick Details:
Model: electric forklift truck FB20
Capacity: 2000kg
Lift height: 3000-6000mm
Aisle width for pallets 1000*1200 crossways: 3500mm
Aisle width for pallets 800*1200 lengthways: 3300mm
Turning radius: 1900mm
Travel speed: 13.5km/h
Battery: 48V450AH
Advantages:
- Electric forklift, lifting height from 3 meters to 6 meters.
- Forks can be tilted forward 6 degree or backward 12 degree.
- Krupp mast from Germany.
- shock absorbing drive axle.
- Multifunctional instrument panel, easy to check the fault.
- Regenerative braking extends battery life and brake pad life.
- The steps, the handle, the position of the steering wheel, the position of the seat, all kinds of switches, levers and instruments are in accordance with the principles of ergonomics.
- Option: (1) Cold storage connector. (2) side shifter. (3) full free lifting.
Cold storage electric forklift with full double AC controller is also available. Suitable for application in cold stores between -30℃ ~ 40℃, the suitable setting will be carried out to the truck such as exposing components with water proof.

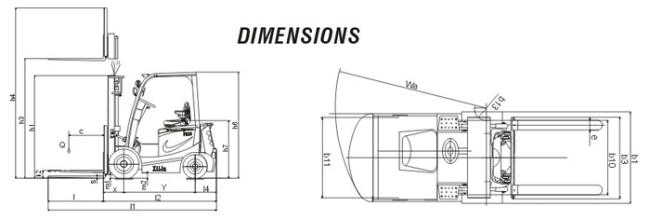

| SPECIFICATIONS OF 2000KG ELECTRIC FORKLIFT TRUCK | ||
| Model | FB20 | |
| Power | electric | |
| Operation type | seat | |
| Load capacity | kg | 2000 |
| Load center distance | mm | 500 |
| Lift height | mm | 3000-6000 |
| Load distance, centre of drive axle to fork | mm | 395 |
| Wheelbase | mm | 1380 |
| Axle loading, laden front/rear | kg | 4647/633 |
| Axle loading, unladen front/rear | kg | 1312/1968 |
| Tyres type | pneumatic/solid | |
| Tyre size, front | mm | 590*179/577*162 |
| Tyre size, rear | mm | 470*137/461*127 |
| Tread, front | mm | 890 |
| Tread, rear | mm | 920 |
| Tilt of mast/fork carriage forward/backward | Grad | 6°-12° |
| Height, mast lowered | mm | 2015-2610 |
| Free lift | mm | 0 |
| Height, mast extended | mm | 4067-7067 |
| Height of overhead guard(cabin) | mm | 2065 |
| Seat height/stand height | mm | 1043 |
| Overall length | mm | 3205 |
| Length to face of forks | mm | 2135 |
| Overall width | mm | 1100 |
| Fork dimensions | mm | 35/100/1070 |
| Fork carriage width | mm | 1088 |
| Ground clearance, laden, below mast | mm | 105 |
| Ground clearance, centre of wheelbase | mm | 115 |
| Aisle width for pallets 1000*1200 crossways | mm | 3500 |
| Aisle width for pallets 800*1200 lengthways | mm | 3300 |
| Turning radius | mm | 1900 |
| Internal turning radius | mm | 435 |
| Travel speed, laden/unladen | km/h | 0-13.5 |
| Lift speed, laden/unladen | mm/s | 270 |
| Lowering speed, laden/unladen | mm/s | ＜600 |
| Max. drawbar pull, laden/unladen | N | 12880 |
| Max. gradeability, laden/unladen | % | 15/20 |
| Acceleration time, laden/unladen | s | 0-3 |
| Battery | V/Ah | 48/450 |
| Type of drive control | DC/AC | |
| Operating pressure for attachments | Mpa | 17 |
| Sound level at the driver's ear acc. to DIN 12053 | dB(A) | ＜63 |
| Service weight | kg | 3280 |

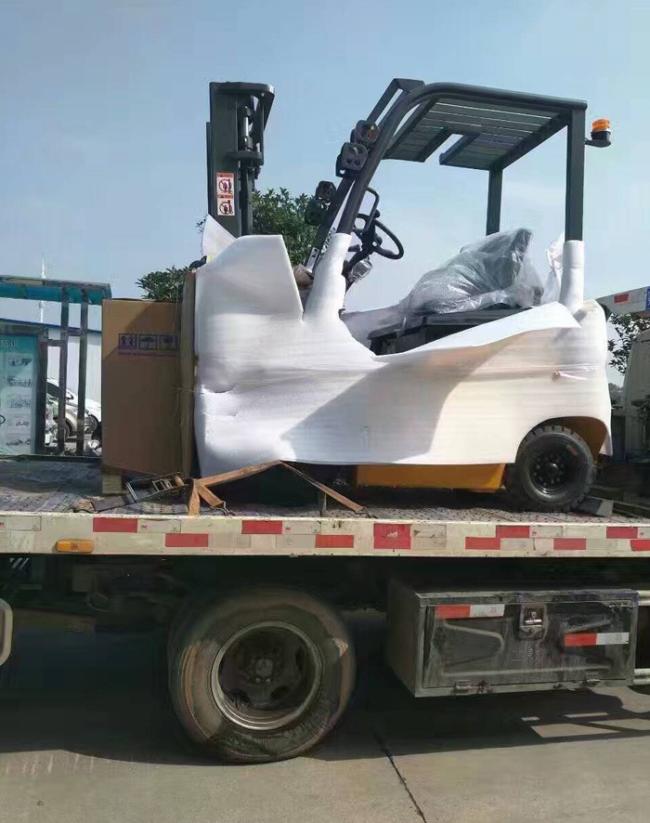

Delivery of electric forklift:
