Full Sealed Battery Electric Pallet Truck Mini Type Anti - Vibration 1800kg Capacity
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
1800kg smallest turning radius electric pallet truck mini type with full sealed battery
Quick details:
Model: Mini electric pallet truck CBD18W
Capacity: 1800kg
Fork height, lowered: 85/75mm
Max. lifting height: 190/180mm
Fork dimensions: 53/160/1150(1220)mm
Turning radius: 1347/1415mm
Travel speed, laden/unladen: 4.5/5km/h
Service weight: 250kg
Advantages:
- This electric pallet truck has the smallest turning radius with the same size as hand pallet truck, which widely used in narrow aisle warehouse, supermarket and containers.
- Horizontal drive wheel provides convenient replacement. Adopting floating balance wheel can prevent the side swing of the truck when travelling.
- Travel smoothly and no swing.
- Great anti-vibration.
- Full sealed battery, free to maintain.
- All operations are done by various buttons on the handle.
- Different capacity can be chosen: 1500kg/1800kg/2000kg
| SPECIFICATIONS OF ELECTRIC PALLET TRUCK | ||
| Model | CBD18W | |
| Load capacity | kg | 1800 |
| Fork height, lowered | mm | 85/75 |
| Tyre size, front | mm | 195*70 |
| Tyre size, rear (single) | mm | 80*93/74*93 |
| Tyre size, rear (double) | mm | 80*70/74*70 |
| Max. lifting height | mm | 190/180 |
| Height of tiller in drive position min./max. | mm | 950/1310 |
| Overall length | mm | 1525/1595 |
| Length to face of forks | mm | 375 |
| Overall width | mm | 685 |
| Fork dimensions | mm | 53/160/1150(1220) |
| Width overall forks | mm | 520/550/685 |
| Aisle width for pallets 1000*1200 crossways | mm | 1725/1795 |
| Aisle width for pallets 800*1200 lengthways | mm | 1775/1795 |
| Turning radius | mm | 1347/1415 |
| Travel speed, laden/unladen | km/h | 4/4.5 |
| Battery | V/Ah | 24/80 |
| Service weight | kg | 250 |
This is a mini electric pallet truck suitable for using in small spaces.

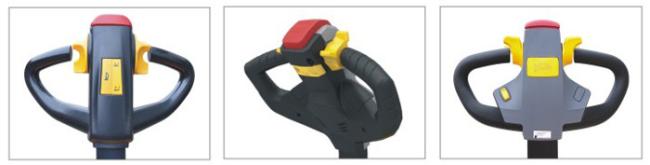

standard handle option: new design handle option: Frei handle
