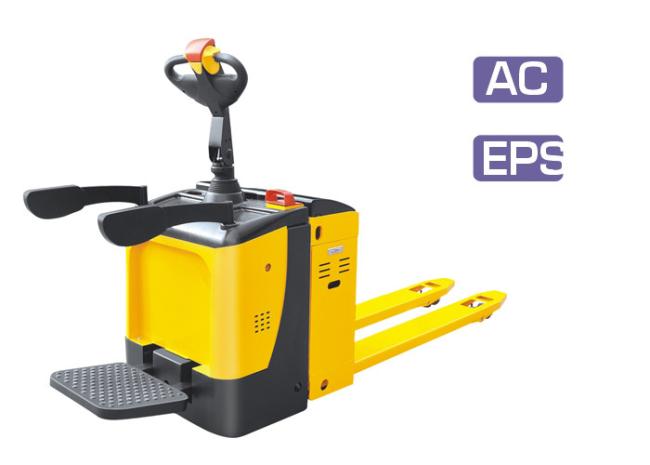

CBDR series electric pallet truck 2500kg with super light steering system

Quick details:

Model:​ Standing on type Electric pallet truck CBD25R​

Capacity: 2500kg

Lowered fork height: 82mm

Max. Lifting height: 202mm

Aisle width for pallets, 1000*1200 crossways: 1910/1960/2030mm

Aisle width for pallets, 800*1200 lengthways: 2010/2010/2030mm

Battery: 24V240AH

​Service weight: 750kg

Advantages:​

• Germany FREI Tiller head.
• ​Emergency stop and belly button.
• BDI and hour meter.
• ​Casters to balance stablity.
• Industrial battery.
• ​Brushless AC motor.
• Vertical driving motor.
• ​Sideway battery change.
• Built-in charger.
• Platform with speed sensor.

Option:​

• Fork width and length (size).
• Load backrest.
• Built-in charger.
• Customized battery compartment.
• ​Entry and exist roller for empty pallets.
• EPS.
• ​Large compartment with battery capacity 400Ah, drive speed 10km/h.
• ​Keypad Ignition switch.
• Frei tiller head with one side lifting button.
• ​Frei tiller head with two lifting button.
