AC motor 1500kg rider electric pallet stacker using Germany Krupp mast


Quick Details:

Description: Electric Rider Stacker CDDK15

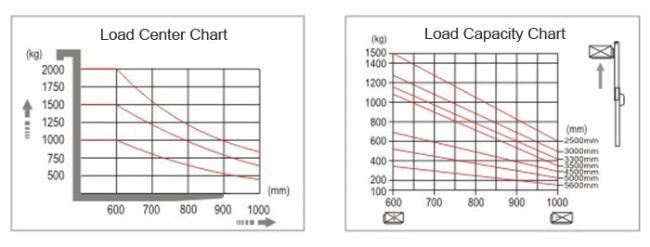

Capacity: 1500kg

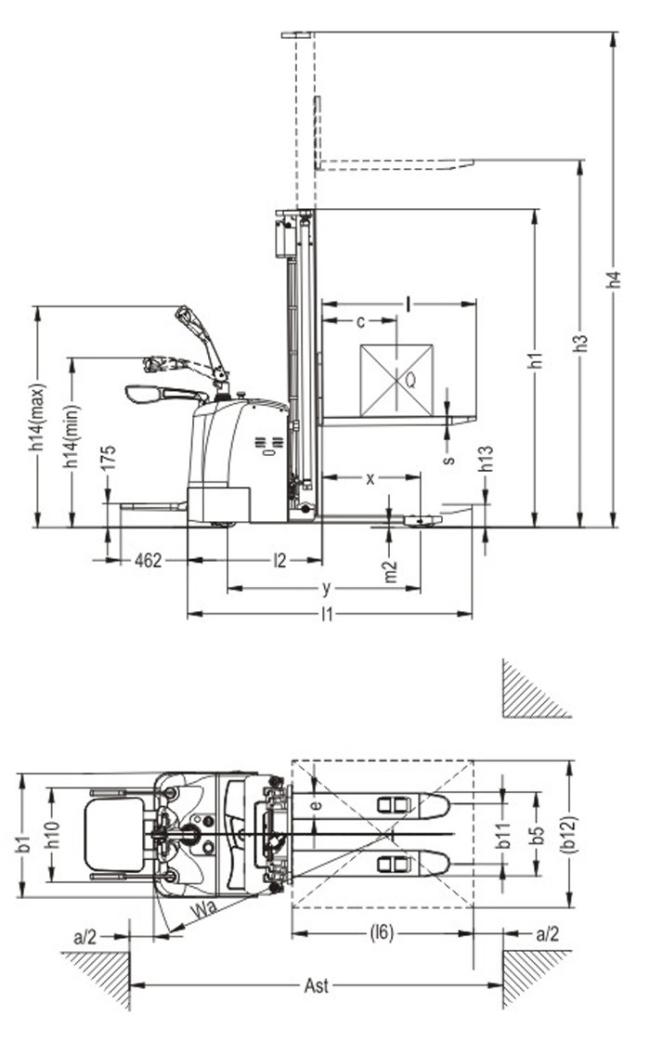

Max. lifting height: 2500/3000/3300/3500/4500/5000/5600mm
Fork dimensions: 60/180/1070(1150)mm

Aisle width for pallets: 2515mm
Lifting speed, laden/unladen: 0.11/0.14m/s

Lowering speed, laden/unladen: 0.12/0.12m/s

Battery: 24V240AH


Advantages:​​​​

• AC motor eliminates carbon brush replacement.
• Multi function display instrument has electric power display, fault code display, working time cumulative display and fast/slow speed display.
• The side door and the battery cover can be opened, the battery can pull out from the side, which is beneficial to the exchange and maintenance of the battery.
• There is a shock absorber to reduce noise.
• The handle is equipped with emergency reverse switch, make the electric pallet stacker operation more safe.
• The eletric pallet stacker is braked when the handle in both vertical and horizontal directions, so as to improve the safety of the whole vehicle.
• Emergency power off switch.
• Automatic deceleration function.
• Built in unloading valve to protect the eletric pallet stacker from overloading and improve reliability.
• Stepless speed change control.
• Low center of gravity.
• Vertical driving wheel.
• Frame and mast is separable.
• Free lift.
• Strong imported mast.
• CANbus technology.
