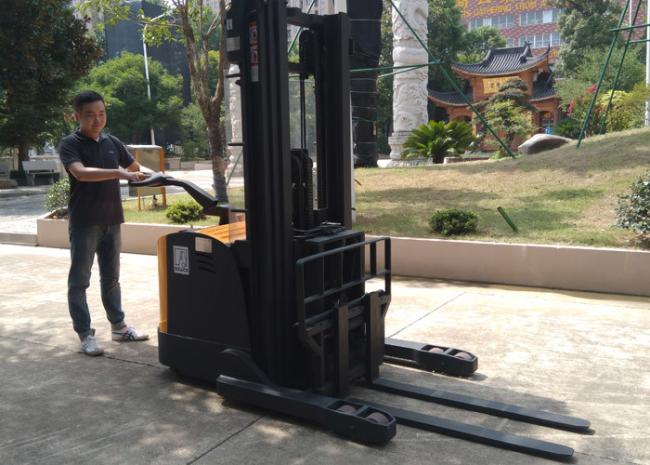

Single Scissor Reach Truck Forklift Standing Operation Type For Narrow Aisle Warehouse

Single scissor fork reach electric warehouse forklift trucks use in narrow aisle warehouse

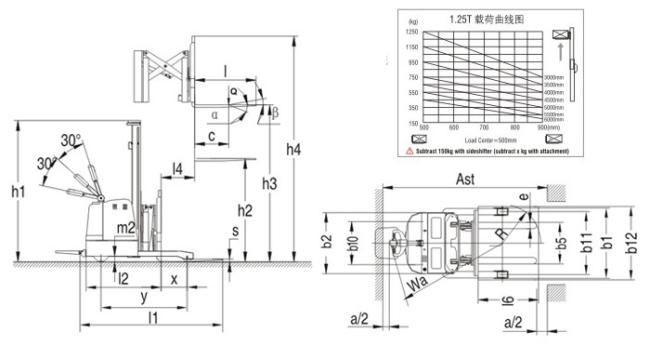

Quick Details:

Model: Electric reach stacker warehouse forklift trucks CQDH12A
​​​Capacity: 1250kg
Lift height: 2500-5600mm
Fork dimensions: 35/100/1070mm

​Aisle width for pallets 1000*1200 lengthways: 2740mm

​Aisle width for pallets 800*1200 crossways: 2794mm

​Turning radius: 1658mm
Travel speed, load/unload: 4.8/5km/h​

​Lifting speed, load/unload: 0.12/0.15m/s

​Lowering speed, load/unload: 0.27/0.2m/s​
Reach distance: 500mm

Battery: 24V320Ah​


Advantages:

• Compact structure are specially suit to use in very narrow aisle warehouse.
• Low gravity, ensure safety operation.
• With disassemble type platform and protection arm.
• Use hydraulic type multi-valve to control I lifting/lowering, fork reach, fork tilting.
• Use handle to control the truck forward and backward.
• The mast and frame are dividable and exchangeable.
• With small turning radius, with good operation performance.
• Multi function display with BDI and hour meter.
• Single scissor fork reach distance is 500mm. Option of double reach can reach 1200mm (Option for CQDH15A).
