High Level Electric Order Picker Truck , Order Picking Forklift Truck 24V 770AH
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description

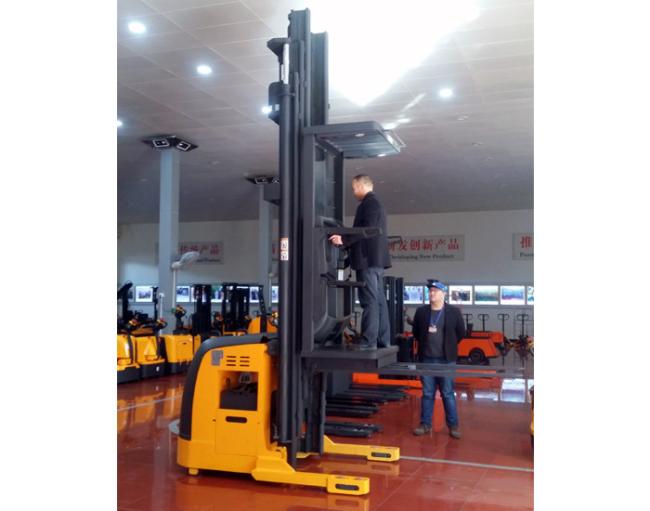

1500kg Electric high level order picker max lifting height 9000mm
Quick Details:
Capacity: 1500kg
Max. lifting height: 5000/7000/9000mm
Height of platform: 230mm
Lowered height: 80mm
Fork dimensions: 45/100/1220mm
Width over forks: 530/715mm
Aisle width for pallets: 1400mm
Turning radius: 1800mm
Travel speed, laden/unladen: 7.7/8km/h
Lift speed, laden/unladen: 0.15/0.28m/s
Lower speed, laden/unladen: 0.28/0.3m/s
Battery: 24V770(1100)AH
Service weight: 3870kg
Advantages:
- Low gravity center provides good stability.
- Advanced electric steering technology (EPS) is humanized designed, with automatic rest, height display and automatic deceleration at high lifting level.
- Finger tip control via joystick, stepless speed control for driving, lifting and lowering speed is adjustable.
- Buffer oil cylinder: the oil cylinder will automatic decelerate when off ground 500mm, to prevent impact and lower noises.
- The mast and the frame are dividable and exchangeable.
- Low battery protection setting prolongs the battery use time.
Electric high level order picker provides safety and high efficiency order picking for high racked warehouse.

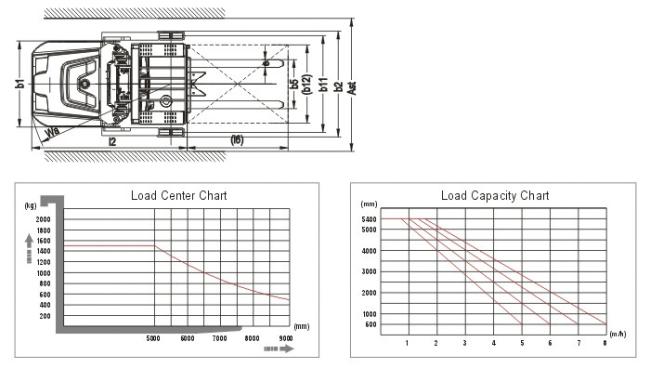

| SPECIFICATIONS OF ELECTRIC HIGH LEVEL ORDER PICKER | ||
| Model | OPS15 | |
| Drive type | battery | |
| Load capacity | kg | 1500 |
| Load center distance | mm | 600 |
| Load distance, centre of drive axle to fork | mm | 206 |
| Tyre size, front | mm | 310*125 |
| Tyre size, rear | mm | 128*73 |
| Aditional wheel | mm | 150*47 |
| Height, mast lowered | mm | 2410/3080/3750 |
| Max. lift height | mm | 5000/7000/9000 |
| Height, mast extended | mm | 7230/9230/11230 |
| Height of platform | mm | 230 |
| Lowered height | mm | 80 |
| Overall length | mm | 3200 |
| Coupling height | mm | 1975 |
| Overall width | mm | 1100/1352 |
| Fork dimensions | mm | 45/100/1220 |
| Width overall forks | mm | 530/715 |
| Height of overhead guard | mm | 2290 |
| Aisle width for pallets 1000*1200 crossways | mm | 1400 |
| Aisle width for pallets 800*1200 lengthways | mm | 1400 |
| Turning radius | mm | 1800 |
| Travel speed, laden/unladen | km/h | 7.7/8 |
| Lift speed, laden/unladen | m/s | 0.15/0.28 |
| Lowering speed, laden/unladen | m/s | 0.28/0.3 |
| Battery | V/Ah | 24/770(1100) |
| Service weight | kg | 3870 |
