Portable Lightweight Double Scissor Lift Table Hand Operated 700 * 450 * 35mm
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
Light weight 150kg portable manual mini scissor lift table with double scissors
Quick Details:
Model: Mini scissor lift table SPS150
Capacity: 150kg
Max. lifting height: 1100mm
Min. height of table: 302mm
Table size: 700*450*35mm
Total height of table: 921mm
Service weight: 64kg
Advantages:
- Double scissor lift table.
- Capacity 150kg.
- Lifting height 1100mm.
- Portable table size 700*450*35mm.
- Valuable material handling equipment for use as a material transporting table on assembly line.
- Structural heavy duty steel construction.
- Easy action foot operated hydraulic lift for raising table top to desired level.
- Hand operated table descent control.
- Over load pass valve pretects operator and pump.
- Option: add the baffle.

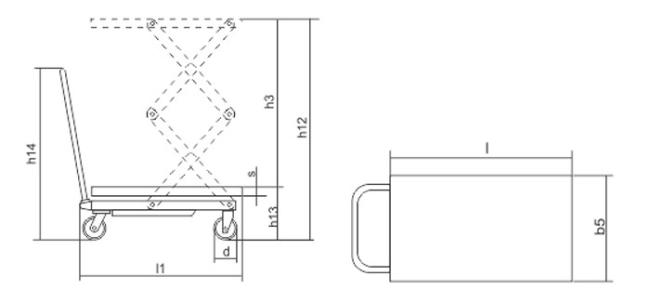

| SPECIFICATIONS OF MINI SCISSOR LIFT TABLE | ||
| Model | SPS150 | |
| Load capacity | kg | 150 |
| Max. lifting height | mm | 1100 |
| Min. height of table | mm | 302 |
| Lifting height | mm | 798 |
| Table size | mm | 700*450*35 |
| Total height | mm | 921 |
| Overall length | mm | 773 |
| Foot pedal cycles to max. height | ≤30 | |
| Wheel diameter | mm | 100 |
| Service weight | kg | 64 |
