Walkie Electric Warehouse Forklift , Single Column Lifting Material Handling Forklift

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 25 - 30 days

Brand: REACH

Product Description

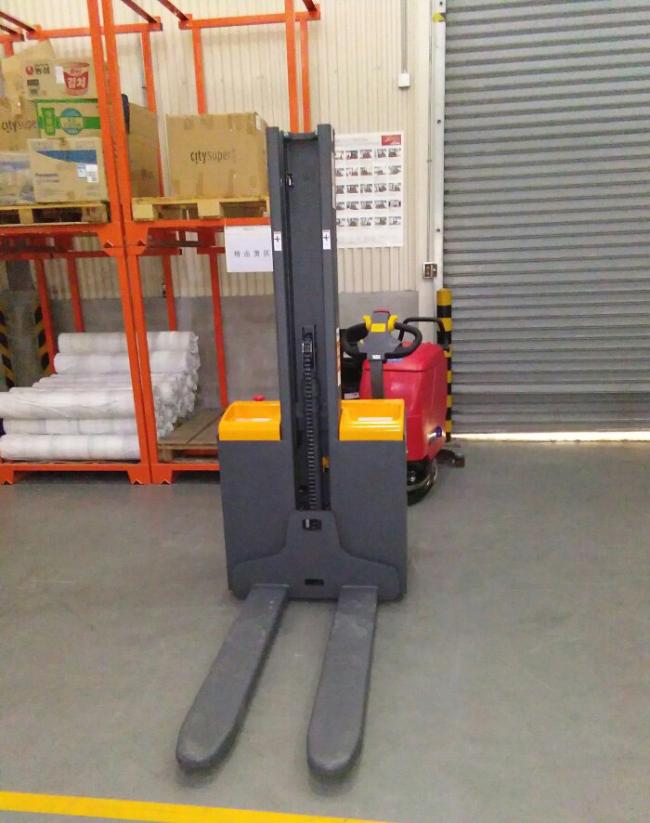

Electric walkie stacker warehouse forklift trucks with single column lifting height 1950mm

Quick Details:

Model: Warehouse forklift trucks with single column CDDRD12
Capacity: 1200kg
Lift height: 1600/1950mm
Fork dimensions: 60/170/1070(1150)mm
Turning radius: 1338mm

Travelling speed, laden/unladen: 5.3/5.6km/h

Lift speed, laden/unladen: 0.11/0.19m/s

Lower speed, laden/unladen: 0.16/0.11m/s
Battery: 24V105Ah

Advantages:

DC brushless motor with high transmission efficiency, have good ramp starting performance.
Low center of gravity, good stability and smooth running.
Small minimum turning radius and excellent steering operating performance.
With Anti-shock device, greatly reduce the noise.
The multi function display instrument with BDI and working hours.
Using the built-in charger easy to access for charging battery.
Adopting Integrated electrical system, wiring easy to maintain.
Environmental & maintenance-free GEL battery.
Single Column mast with wide view for operation.
Emergency brake function improve the safety operation.
Low-voltage protection function.

SPECIFICATIONS
Model		CDDRD12
Load capacity	kg	1200

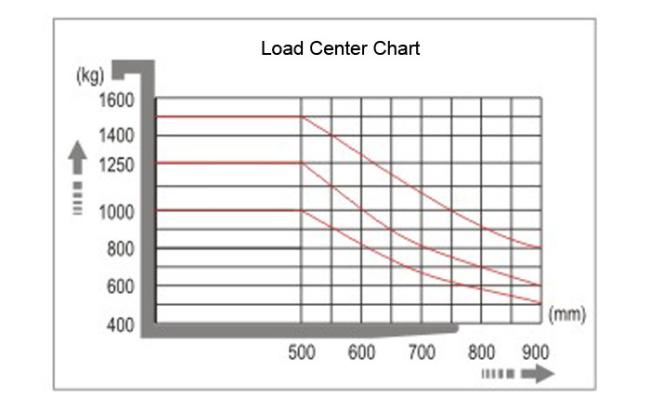

Load center	mm	600
Fork hanging distance	mm	630
Tyre size, front	mm	250*70
Tyre size, rear	mm	80*70
Additional wheels (dimensions)	mm	150*60

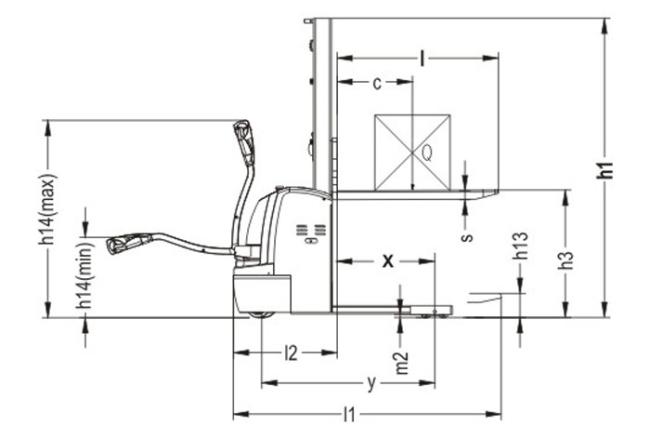

Height, mast lowered	mm	1980/2330
Max. lifting height	mm	1600/1950
Height, mast extended	mm	1980/2330
Height of tiller in drive position min./max.	mm	670/1300
Fork height, lowered	mm	90
Overall length	mm	1780/1860
Length to face of forks	mm	708
Overall width	mm	820
Fork dimensions	mm	60/170/1070(1150)
Width overall forks	mm	570

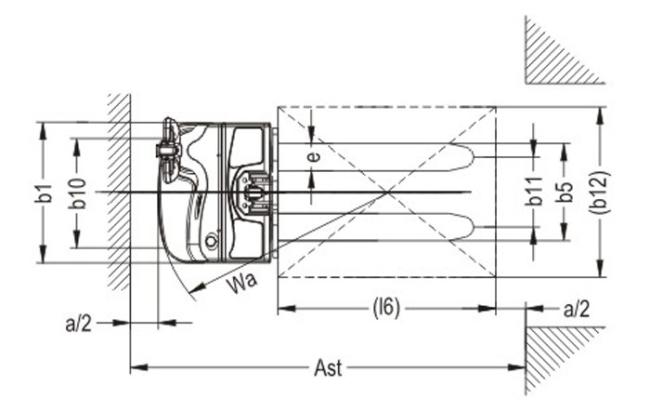

Aisle width for pallets 800*1200 lengthways	mm	2220
Turning radius	mm	1338
Travel speed, laden/unladen	km/h	5.3/5.6
Lift speed, laden/unladen	m/s	0.11/0.19
Lowering speed, laden/unladen	m/s	0.16/0.11
Battery	V/Ah	24/80
Service weight	kg	590
