Galvanized Hand Pallet Truck Corrosion Resistance Simple Design CE Certification
Price:
Negotiable
MOQ:
6 sets
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
Capacity 2500kg galvanized hand pallet truck with corrosion resistance
Quick Details
Model: Galvanized hand pallet truck BFG
Capacity: 2500kg
Lowered fork height: 85/75mm
Total lift height: 200/190mm
Fork dimension: 45/160/1150(1220)mm
Width overall forks: 520/550/685mm
Ground clearance, centre of wheelbase: 40/30mm
Turning radius: 1266/1336mm
Service weight: 65-80kg
Advantages:
-

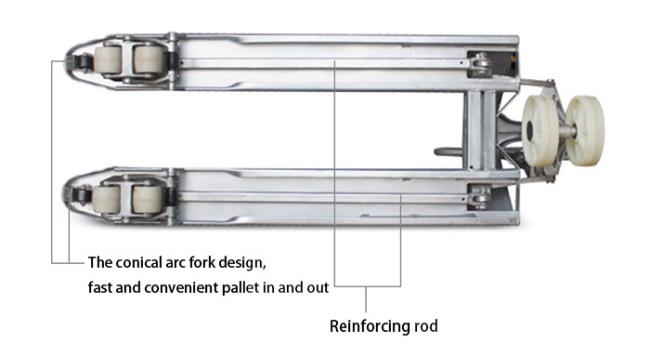

The conical arc fork design, fast and convenient pallet in and out.
-
Galvanized, widely used in corrosive environment, clean air space.
-
Chrome plated pistons and valves.
-
The plating structure comprises a fork frame, wheel frame, and a push rod.
-
Leak proof and vacuum design type electroplating pump.
-
Fork lower height can reach 75 mm (3'').
-
Anticorrosion.
| SPECIFICATIONS OF GALVANIZED HAND PALLET TRUCK | ||
| Model | BFG | |
| Capacity | kg | 2500 |
| Lowered fork height | mm | 85/75 |
| Steering wheel | mm | 200/180 |
| Fork wheel single | mm | 80*93/74*93 |
| Fork wheel tandem | mm | 80*70/74*70 |
| Max. lifting height | mm | 200/190 |
| Total height | mm | 1224/1214 |
| Overall length | mm | 1533/1603 |
| Fork dimensions | mm | 45/160/1150(1220) |
| Width overall forks | mm | 520/550/685 |
| Ground clearance, centre of wheelbase | mm | 40/30 |
| Aisle width for pallets 1000*1200 crossways | mm | 1733/1803 |
| Aisle width for pallets 800*1200 lengthways | mm | 1783/1803 |
| Turning radius | mm | 1266/1336 |
| Service weight | kg | 65-80 |
