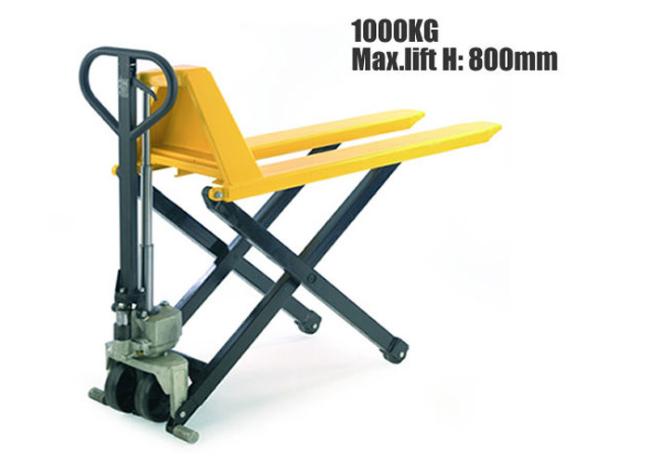

Small Size Scissor Pallet Truck , High Lift Pallet Truck With Lifting Height 800mm

1000kg scissor high lift hand pallet truck with lifting height 800mm

Quick Details

Model: High lift hand pallet truck JF

​​​Capacity: 1000kg

Lowered fork height: 85mm​

​Max. lift height: 800mm​​

Steering wheel: Φ180*50mm

​Fork wheel: Φ74*50mm

​Turning radius: 1360mm​​

​Service weight: 104-115kg

Advantages:

• Can lift cargos to the position of 800mm height, used as a worktable, and is widely used in automobile, mould, electronics and other industries.

• Ideal design with numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.

• Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.

• ​Support legs come into operation automatically.

• It prevents the unit from moving when the forks are raised to keep the safety of the operator.

• ​Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.

• 210 degree turning radius.

• ​Reduce physical effort and considerably improve the ergonomic conditions at work stations by raising the trucks to the desired height.

• ​2 lateral stabilizers when raised ensure good stability.

​

​
