Scissor Lift Hand Pallet Truck With Extra Long Front Legs 1670mm Turning Radius
Price:
Negotiable
MOQ:
6 sets
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
High scissor lift hand pallet truck with extra long front legs
Quick Details
Model: High scissor lift hand pallet truck JF7
Capacity: 1000kg
Lowered fork height: 85mm
Max. lift height: 800mm
Fork length: 1220mm
Steering wheel: Φ180*50mm
Fork wheel: Φ74*50mm
Turning radius: 1670mm
Service weight: 104-115kg
Advantages:
-
The high lift hand pallet truck offers the users an efficient and versatile tool for material handling.
-
Improved safety: Automatic activation of self adjusting stabilizers when lifting loads higher than 400mm for maximum stability.
-
Great stability: Extra long front legs increase the stability when handling unevenly loaded pallets.
-
Quick-lift operation: Quick-lift function doubles the lifting speed when lifting loads less than 250kg.
-
Easy maneuvering of loads throughout work place.
-
Easy placing of load to correct ergonomic work height.

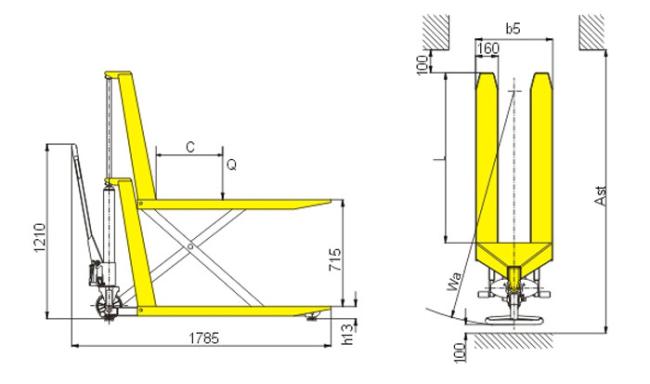

| SPECIFICATIONS | ||
| Model | JF7 | |
| Capacity | kg | 1000 |
| Lowered fork height | mm | 85 |
| Steering wheel | mm | 180*50 |
| Fork wheel | mm | 74*50 |
| Fork length | mm | 1220 |
| Width overall forks | mm | 550/685 |
| Aisle width for pallets 1000*1200 crossways | mm | 1985 |
| Aisle width for pallets 800*1200 lengthways | mm | 1985 |
| Turning radius | mm | 1670 |
| Service weight | kg | 104-115 |
