Electric Scissor Lift Pallet Jack 12V 100AH Labour Saving 181kg Service Weight
Price:
Negotiable
MOQ:
6 sets
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description

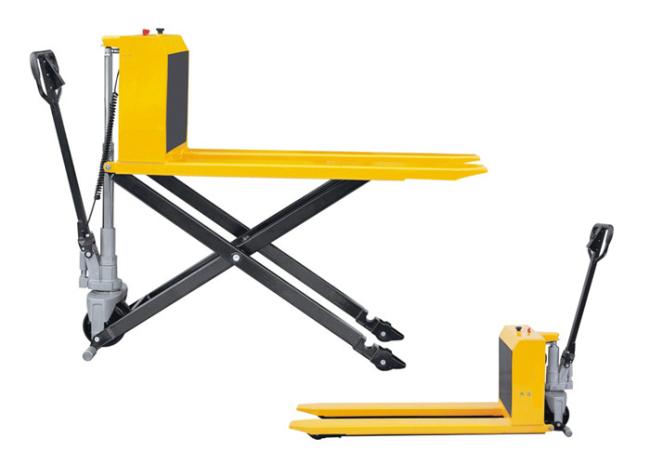

Electric high lift hand pallet truck improve the work efficiency
Quick Details
Model: Electric high lift hand pallet truck JFD8
Capacity: 1000kg
Lowered fork height: 85mm
Max. lift height: 800mm
Fork length: 1245mm
Steering wheel: Φ180*50mm
Fork wheel: Φ74*50mm
Turning radius: 1480mm
Battery: 12V100Ah
Service weight: 181kg
Advantages:
-
Electric high lift hand pallet truck could occupy a certain advantage when the good is higher and used frequently.
-
Latest design of limiting stopper.
-
Can move and lift the pallets to the ergonomic height.
-
Focus on the safe use of the operator, create the use of ergonomic environment, this can effectively avoid the operator from injury or strain, and ergonomic handle so that operators can easily grasp.
-
Long service life and low maintenance cost.
-
Using high quality raw materials.
-
Ergonomics handle designing make the operator more comfortable and labour saving.
Service:
-
OEM and ODM.
-
Spare parts.
-
Warranty one year.
-
Service support is available for 24 hours.
-
Fast delivery.

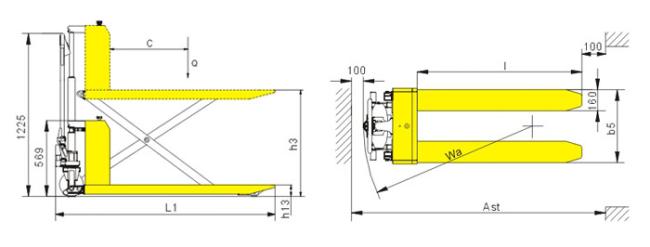

| SPECIFICATIONS | ||
| Model | JFD8 | |
| Capacity | kg | 1000 |
| Lowered fork height | mm | 85 |
| Steering wheel | mm | 180*50 |
| Fork wheel | mm | 74*50 |
| Max. lift height | mm | 800 |
| Overall length | mm | 1652 |
| Fork length | mm | 1245 |
| Width overall forks | mm | 550/685 |
| Aisle width for pallets 1000*1200 crossways | mm | 1852 |
| Aisle width for pallets 800*1200 lengthways | mm | 1852 |
| Turning radius | mm | 1480 |
| Lift motor rating at S3 15% | kw | 0.7 |
| Battery voltage, nominal capacity K10 | V/AH | 12/100 |
| Battery weight | kg | 31 |
| Service weight | kg | 181 |
