8000mm electric reach truck narrow aisle truck with heavy duty chassis

Quick Details:

Product name: Heavy duty narrow aisle truck CQD15

Capacity: 1500kg​

Max. Lifting height: 3000/5000/6200/7400/8000mm

Reach distance: 600mm

​Free lift: ~ /1700/2100/2500/2700mm

​Fork dimension: 40/120/1070mm

​Travel speed, load/unload: 9/9.3km/h​​

Lift speed, load/unload: 0.24/0.3m/s

​Lowering speed, load/unload: 0.5/0.4m/s

​Aisle width for pallets 1000*1200 crossways: 2800mm

Aisle width for pallets 800*1200 lengthways: 2890mm

Turning radius: 1780mm

Battery: 48V400AH

Advantages:

• ​​​AC control system.

• Powering steering system (EPS).

• Multi-function display can show: brake status, driving direction, hour meter, driving speed, fault code, etc..

• Manual multi-valve.

• Adjustable speed for forks lifting/lowering, mast forward/backward and side shift right/left.

• German ZF brand gear box.

• Adjustable steering wheel.

• With travelling speed limited device when forks at high level.

• Electronic height limited device.

Option:

• Electronic multi valve.

• Finger-tip control stick.

• Side shift.

• Height selection and height position system.

• LCD display and camera (LCD for cold storage are available).

• Travel/back-up flashing lights.

• Side way battery.

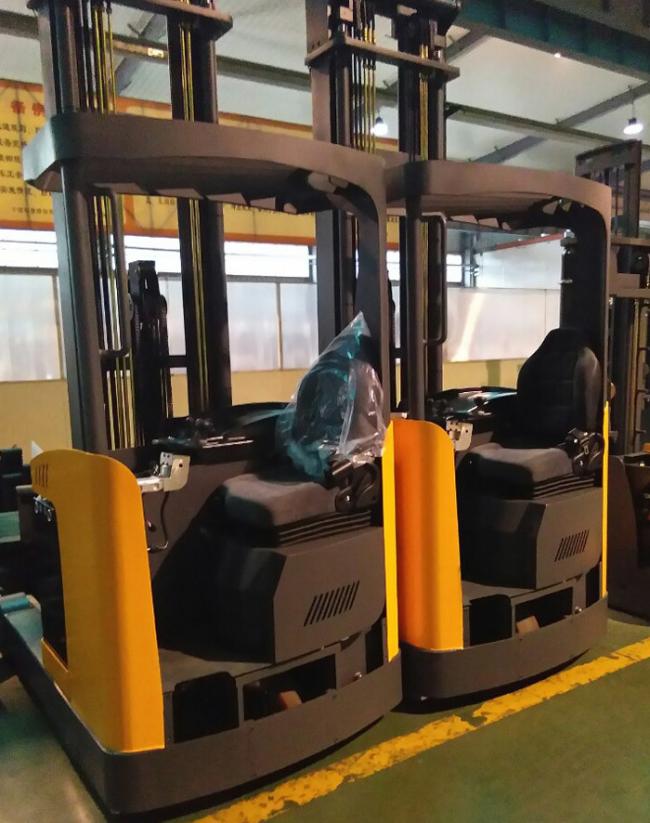

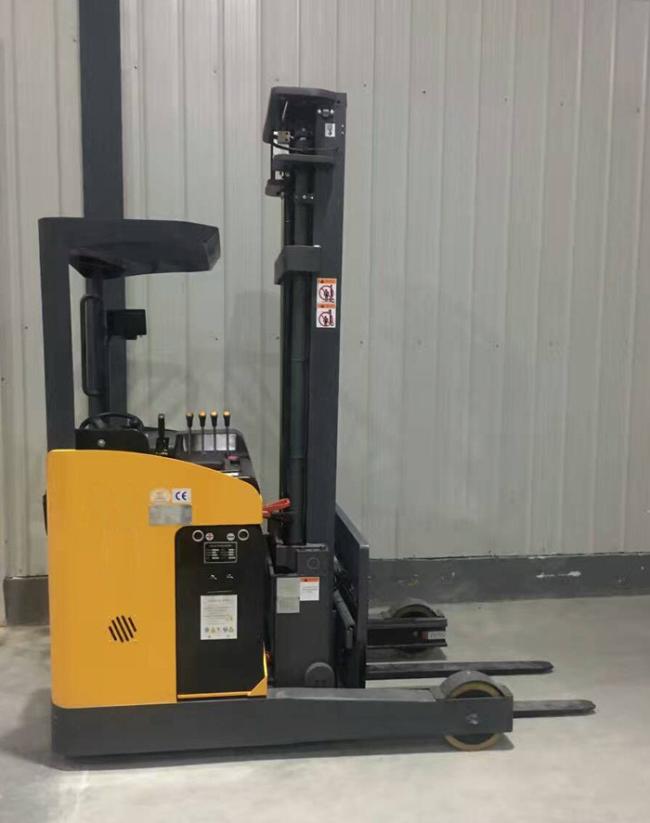

CQD15 (EPS) Reach Truck is innovation type based on CQD15M, which with heavy duty chassis, extra large compartment and unequalled visibility, It can excels bigger load capacity at high reach elevation. The compact cabin design can be used in drive-in racking, which can help the operator works more effectively.
