Electric Mast Narrow Aisle Truck 12000mm Lifting Height Reach Type Yellow Color
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
Electric mast reach truck narrow aisle truck offers 12000mm lifting height
Quick Details:
Product name: Electric mast reach narrow aisle truck CQD20H
Capacity: 2000kg
Max. Lifting height: 10200/11100/12000mm
Reach distance: 700mm
Free lift: 3600/3900/4200mm
Fork dimension: 40/120/1070mm
Travel speed, load/unload: 9km/h
Lift speed, load/unload: 240/300mm/s
Lowering speed, load/unload: 500/400mm/s
Aisle width for pallets 1000*1200 crossways: 2920mm
Aisle width for pallets 800*1200 lengthways: 2980mm
Battery: 48V500AH
Advantages:
-
AC control system.
-
Powering steering system (EPS), (standard for 10~12m, option for 8~9.5m) .
-
Electronic multi-valve.
-
Multi-function display can show: brake status, driving direction, hour meter, driving speed, fault code, etc..
-
Adjustable speed for forks lifting/lowering, mast forward/backward and side shift right/left.
-
German ZF brand gear box.
-
Adjustable steering wheel.
-
With travelling speed limited device when forks at high level.
-
Electronic height limited device.
-
Use “H” type mast steel is imported from Germany.
-
Use double controllers to realize stepless speed regulation of side shift, both lifting and travelling.
-
Have safety travelling speed limited device in the mast.
Option:
-
Side shift.
-
Height selection and height position system.
-
LCD display and camera (LCD for cold storage are available).
-
Travel/back-up flashing lights.
| SPECIFICATIONS | ||
| Model | CQD20H | |
| Capacity/rated load | kg | 2000 |
| Load center distance | mm | 600 |
| Drive wheel dimension | mm | 406*152 |
| Fork wheel dimension | mm | 340*104 |
| Height, mast lowered | mm | 4190/4490/4790 |
| Free lift | mm | 3600/3900/4200 |
| Lifting height | mm | 10200/11000/12000 |
| Height, mast extended | mm | 11000/11900/12800 |
| Height of overhead guard(cabin) | mm | 2200 |
| Seat height | mm | 1060 |
| Height of crura | mm | 355 |
| Fork dimensions | mm | 40/120/1070 |
| Overall length | mm | 2510 |
| Length(from forks bracket) | mm | 1440 |
| Reach distance | mm | 700 |
| Length(barring fork) | mm | 2050 |
| Overall width | mm | 1510 |
| Fork width | mm | 1260 |
| Aisle width for pallets 1000*1200 crossways | mm | 2920 |
| Aisle width for pallets 800*1200 lengthways | mm | 2980 |
| Turning radius | mm | 1920 |
| Travel speed, laden/unladen | km/h | 9 |
| Lift speed, laden/unladen | mm/s | 240/300 |
| Lowering speed, laden/unladen | mm/s | 500/400 |
| Battery | V/Ah | 48/500 |
| Service weight | kg | 4840 |
-

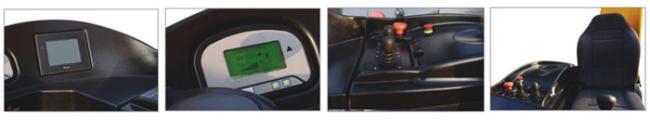

Camera and positioning: Optional positioning system offers easier pallet handling at height through camera system.
-
Precise and effortless finger tip control of mast movements and traveling.
-
Ergonomic and full suspension comfortable seat full adjustable.
-
Comfortable armrest and light power steering wheel.
-
Optional of cabin.
