1 Ton Electric Narrow Aisle Truck 5m Lifting Height Simple Operation
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
1 ton 5m electric narrow aisle truck only need 1250mm turning radius
Quick Details:
Product name: Electric narrow aisle truck CPD10B
Capacity: 1000kg
Max. Lifting height: 5000mm
Fork dimension: 35/100/950mm
Travel speed, load/unload: 5.8/6.0km/h
Lift speed, load/unload: 0.15/0.25m/s
Lowering speed, load/unload: 0.08/0.1m/s
Aisle width for pallets 1000*1200 crossways: 2750mm
Aisle width for pallets 800*1200 lengthways: 2860mm
Battery: 24V360AH
Advantages:
-
The operation is simple and flexible, and the turning radius is small.
-
Half seat chair design, can relieve the fatigue of the operator AC motor speed control.
-
It has regenerative braking and electric braking function.
-
With battery over discharge protection control function.
-
There are two types of hydraulic power steering and electric steering.
-
Electric steering system has: (1) Automatic zero search function of steering wheel at startup; (2) Automatic speed down function when turning; (3) Steering wheel angle display function
-
1.5T load capacity is also available.
| SPECIFICATIONS | ||
| Model | CPD10B | |
| Power | battery | |
| Capacity/rated load | kg | 1000 |
| Load center distance | mm | 500 |
| Max. lifting height | mm | 5000 |
| Load distance, centre of drive axle to fork | mm | 180 |
| Tyre size, front | mm | 250*80 |
| Tyre size, rear | mm | 280*100 |
| Height, mast lowered | mm | 2255 |
| Free lift | mm | ~ |
| Height, mast extended | mm | 5600 |
| Height of overhead guard(cabin) | mm | 2090 |
| Height of tiller in drive position min./max. | mm | 1000 |
| Overall length | mm | 2250 |
| Overall width | mm | 890 |
| Fork dimensions | mm | 35/100/950 |
| Fork carriage width | mm | 560 |
| Ground clearance, centre of wheelbase | mm | 50 |
| Aisle width for pallets 1000*1200 crossways | mm | 2750 |
| Aisle width for pallets 800*1200 lengthways | mm | 2860 |
| Turning radius | mm | 1250 |
| Travel speed, laden/unladen | km/h | 5.8/6 |
| Lift speed, laden/unladen | m/s | 0.15/0.25 |
| Lowering speed, laden/unladen | m/s | 0.08/0.1 |
| Battery | V/Ah | 24/360 |
| Service weight | kg | 2230 |

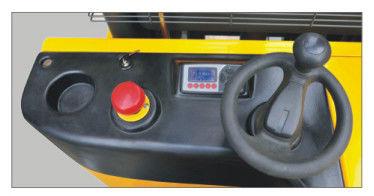

Multi function display

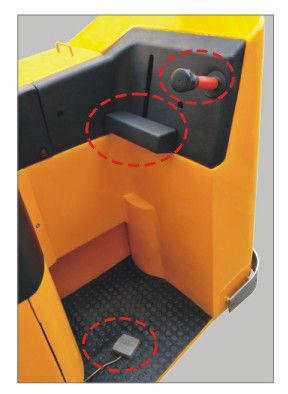

Comfortable operation compartment
with adjustable supporting plate
